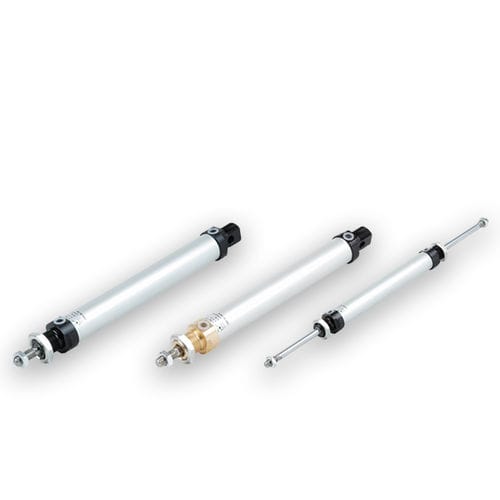

Microcylinders are the most widespread linear actuators in common use due totheir reduced dimensions. They can be applied in the most varied of sectors,from packaging to textiles, from woodworking machines to the ceramic sector andso on.

MICROCYLINDERS ACCORDING TO STANDARD ISO 6432
THREADED END COVERS VERSION
ROLLED END COVERS VERSION – “MIR”
TECHNOPOLYMER “TECNO-MIR”

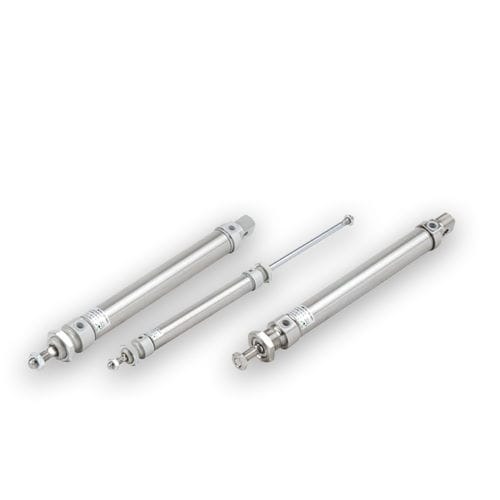

The 12X stainless steel ISO 6432 cylinders series are designed for corrosion resistance application such as marine, pharmaceutical and food ambiences.
The pre lubrication grease used is NSF H1 certified for food application.
Specific care has been taken during the design stages and the result is a clean profile cylinder easy to clean and free from possible residue build-up areas. All parts in contact with the external environment are in Stainless steel 316L and the seals are available in three different compounds for different temperature applications:
PUR -30C° – +80C°, FPM -5°C – +150°C and NBR -5°C – +70°C.
The range starts from 16 bore up to 63 bore, double acting version standard or with through rod, magnetic or not magnetic piston available.
The end caps are crimped onto the barrel for bore sizes 16 to 25 and screwed on the barrel from 32 to 63 bore.
Depending on the type of mounting required it is possible to choose different end caps style.
The piston is aluminium and the sensor bracket, when required is in stainless steel 316 with plastic adaptor or in plastic material. The cylinder can be fixed with the wide range of stainless steel accessories.

Parameter Name	Parameter Value
Type	pneumatic
Technology	piston magnetic piston
Configuration	single-acting
Material	aluminum
Norms	ISO
Other characteristics	round threaded micro
Stroke (mm)	15 - 500
Force (N)	10 - 110
Pressure	Max.: 10 bar (145 psi)
Ambient temperature	Max.: 150 °C (302 °F)Min.: -5 °C (23 °F)
