About

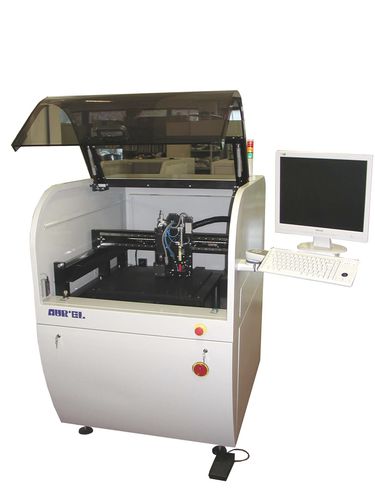

The XCEL is an In-Line or Stand-Alone work cell for Dispensing, Ink Jet, Optical Inspection,
Assembly, Soldering, etc..
The applications are in Thick Film, LTCC, polymeric, glass and wafers, for display, solar cell,
sensors and biosensors, RFID smart card and polyester foils.
High precision X –Y axis with 5 µm repeatability.
Technical specification XCEL
Substrate dimension : 50x50mm – 450x500mm fixed by Vacuum on the table
Board thickness : 0.2mm – 5mm
Clearance from board : t op 20mm; bottom 0 – 50mm
X – Y axis : max speed 600mm/sec; repeatability error ±5µm
OS : Windows XP prof English
Power supply : 240V 50Hz 800W
Compressed air : 5 atm 10l/min
Temperature : 15 – 30°C, 5 – 80% RH
Dimensions : 1000 x 1300 x 1450H
Weight : 500 kg
Z axis : max 50mm/sec; repeatability error ±5µm
Θ axis : max speed 1,5°/sec; repeatability error ± 0,0014° Bottom lighting for ceramic, foils, glass.
The AOI45 is an In-Line or Stand-Alone machine for the automatic inspection of printed
substrates.
The applications are in Thick Film, LTCC, polymeric, glass and wafers, for display, solar cell,
sensors, RFID smart card and polyester foils.
Printed materials to be inspected are conductor dielectric, resistor and solder pastes.
By means of PPI software, the machine checks all defects: dimension of the printed track and pad, quality, continuity, gap beetwen the fine lines, position and tollerance of the different layers.
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Technology |
optical
|
| Sector |
for the electronics industry
|
| Other characteristics |
|
