Certifications - 2006-42-CE (Machinery Directive);
2014-35-UE (LVD);
2014-30-UE (EMC);
DM 174/2004-Italy (Installations on aqueduct);
ACS-France (Attestation de Conformité Sanitaire)
Head range - 30-550m
Flow range - 2-400 l/s
Number of nozzles - 6
Flow regulation - on/off valves by electrical drive for flow regulation
Generator - asynchronous squirrel-cage motors, high efficiency
Generator class insulation/temp. rise - F/B
Bearings of generator - lifetime lubricated / with grease-gun
Temperature sensor generator windings - N°3 PTC in series
Frequency - 50-60 Hz
Voltage - 230/400V – 277/480V, three-phase
Protection grade - IP23 (protection grade of generator IP55)
Rotational speed sensor - proximity 1 signal/revolution
The components in contact with water are certified DM 174/2004 (Italy) – ACS (France)

OPTIONALS
ON/OFF VALVES MANUALLY OPERATED
NEEDLE VALVE FOR LINEAR FLOW REGULATION DRIVEN BY ELECTRIC ACTUATOR
NEEDLE VALVE FOR LINEAR FLOW REGULATION OPERATED MANUALLY
PT100 TEMPERATURE SENSORS IN WINDINGS GENERATOR
PT100 TEMPERATURE SENSORS IN BEARINGS GENERATOR
VIBRATION SENSOR

Parameter Name	Parameter Value
Type	hydraulic
Applications	for power generation

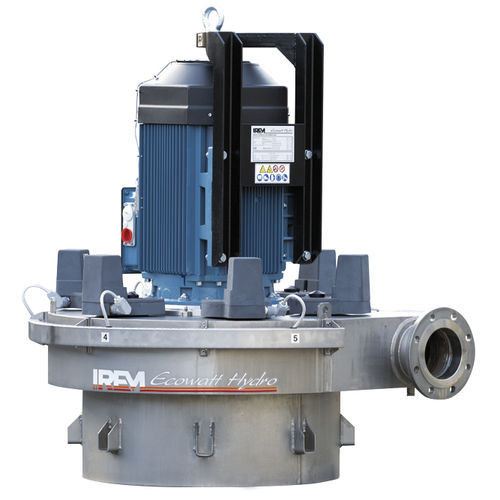

Other characteristics	vertical Pelton
Rated power kW	Max.: 750 kW (1,019.72 hp)Min.: 3 kW (4.08 hp)
