Max input power : 149 kW (200 hp)
Max input no load speed : 4000 rpm
Max input torque : 949 Nm (700 lb-ft)
Motor adapters : SAE C, D

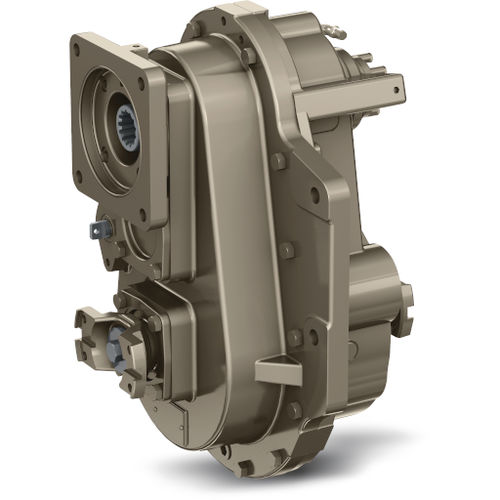

The 18000 HMD — for high-power needs.

The most popular model in our HMD lineup, the two-speed 18000 offers a generous 149-kW (200-hp) rating. The design includes an integral lube pump that completely lubricates input splines and bearings, increasing the life of the transmission. Two high-gear and five low gear ratio options produce the speeds appropriate for equipment in the forestry, construction, railroad, mining, and ag industries.

Parameter Name	Parameter Value
Options	HMD
