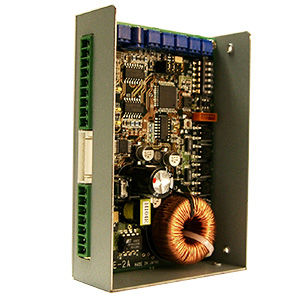

● Usable for many different Coreless DC motors thanks to the wide range of power supply voltage: +12V to +50V. No need to prepare a complicated control power supply because of a single power supply.
● Encoder signal can be used for speed-feedback, in addition to DC tacho signal.
● Respond to the encoder's max. frequency of 500kH with use of the high-speed F/ V converter (max.frequency: frequency of Phase A or Phase B. Internal operation: runs at frequency of 2Mz after being multiplied by 4.
● Usable for many different Coreless DC motors with use of the output- stage choke coil equipped as standard.
● Prevent uncontrolled rotation with the encoder's detector of wire disconnection at the speed-control mode.
● Reduce speed fl uctuation caused by load change, with use of IR correction at the voltage-control mode.

Parameter Name	Parameter Value
AC/DC	DC
Type	PWM
Output signal	analog
Product applications	for servo motors
Voltage (V)	24 - 48
Other characteristics	compact torque control with speed control miniature
Intensity (A)	2 - 5
