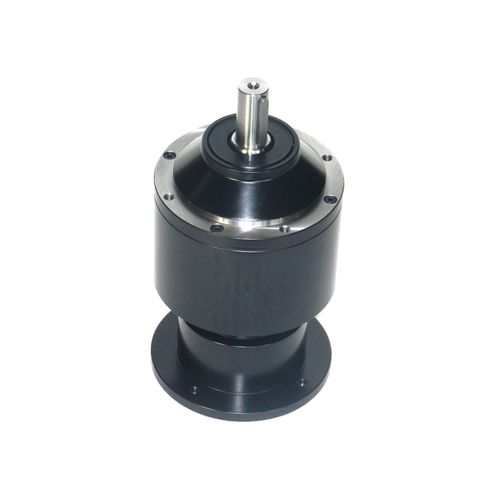

ACBAR eccentric gears are indestructible and allow greatest gear ratios in minimal space.

What ACBAR eccentric gears especially characterized.
• Compact and indestructible
• Ratios up to 13‘600:1 single stage
• Almost any ratio feasible
• Flange or foot case housing (mounting)
• Direct motor mounting
• Smooth operation

Parameter Name	Parameter Value
Type	cycloidal
Shaft orientation	parallel-shaft
Torque (Nm)	200 - 500 100 - 200 50 - 100 500 - 1000
Shaft configuration	hollow-shaft solid-shaft
Number of stages	single-stage
Applications	for conveyors transmission for trolleys for roller mills for textiles for the petrochemical industry for servo motors for robots for heavy-duty applications for industrial applications for shaft for pipes centrifuge for agricultural machinery for lathes for milling applications for butterfly valves for electrical drives for hoist units for railway applications for aerial cable applications for extruders wheel for conveyor belts for excavators for medical devices for machines for the chemical industry escalator for mining applications for automobiles for pharmaceutical products for slewing drive for the paper industry for vertical mills for rack-and-pinion drives for material handling equipment for vehicles for actuators for construction equipment antenna for marine applications for agitators mill duty for doors for pipe
Other characteristics	compact custom
Backlash (°)	0.09 - 0.54
