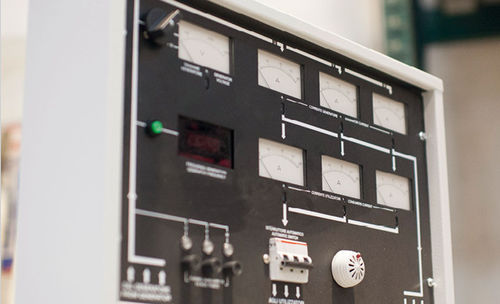

CONTROL BOARD DISTRIBUTION AND CONTROL
QDM-QDT
CONTROL BOARDS 3-500 KW
GENERAL CHARACTERISTICS
Certifications - CEI 61439-1, CEI 61439-2
Power range - 3 – 500 kW
Voltage - 230/400V – 277/480V
Frequency - 50/60 Hz
Connections - single-phase / three-phase
Measures - voltage, current and frequency, through analogical instrumentation, or alternatively network analyser: digital, three-phase, voltage meter, current, frequency, cos.f, active/ reactive/apparent power
Protections includes - magneto thermal switch on users line, for generator protection
Warnings - on voltage / frequency generated thresholds
OPTIONALS
PLC FOR THE AUTOMATION AND HMI TOUCH SCREEN OPERATOR INTERFACE
EMERGENCY STOP (AUTOMATIC CLOSING OF THE ELECTRIC VALVE IN THE EVENT OF ALARM)
FLOW RATE CONTROL IN PRESSURE / LEVEL
ANALOGIC LEVEL / PRESSURE SENSOR 4-20 MA SIGNAL TELESIGNAL SMS
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Other characteristic |
automatic, electric, digital
|
