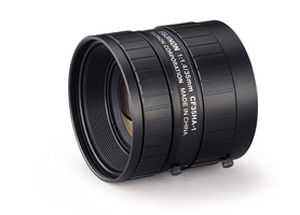

FUJINON CF-HA series is compatible with large 1" image sensor cameras to realize high resolution up to 1.5 megapixels (7.4 pixel pitch).

Low distortion
FUJINON CF-HA series thoroughly minimizes distortion which causes problems in applications requiring high accuracy such as dimension measurement.

High performance in close-up shooting
The rear focusing method*1 enables high performance even in close-up shooting.

Low F-number
The low F-number up to F1.4 ensures a clear image even in low light situations.

Enough peripheral light amount
Enough light is captured even at the edges of the image, which contributes to stable inspection accuracy.

Parameter Name	Parameter Value
Type	zoom
Technical applications	machine vision inspection
Other characteristics	high-resolution rugged low-distortion CCD camera
Focal length	Min.: 12.5 mm(0.49 in)Max.: 75 mm(2.95 in)
