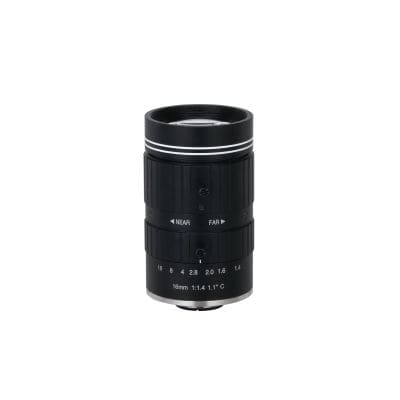

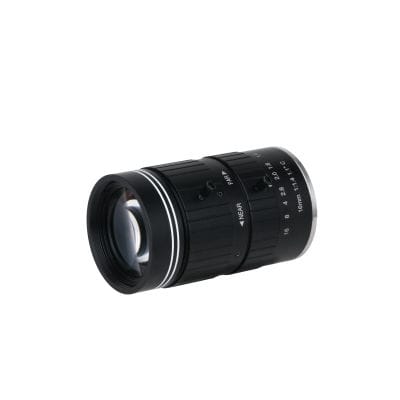

12MP 1.1" F1.4 16 mm Fixed-focal Lens (Manual Iris)

> 1.1" image sensor with high compatibility for ITC cameras.
> IR correction ensures 24 hours real-time monitoring.
> Standard C mount for easy installation and strong compatibility.
> ROHS standard.

Performance

Image Sensor Size
1.1"
Lens Pixel
12MP
Aperture
F1.4 ± 10%
IR Light
Yes
CRA
10.3°
Total Optical Length
96.6 mm ± 0.5 mm (in air)
Flange Back Focal Length
17.52 mm ± 0.2 mm (in air)
Mechanical Back Focal Length
11.74 mm ± 0.2 mm (in air)
Field of View
61.3° × 50.3° × 37° (D × H × V)
Distortion
–2.35%
Minimum Object Distance (MOD)
0.3 m (0.98 ft)

Control Mode

Focus Control
Manual
Iris Control
Manual

Port
Port Type
C mount

Structure
Product Dimensions
Ф48 mm x 84.25 mm
Appearance Color
Black
Casing
Metal
Net Weight
0.356 kg ± 0.005 kg (0.78 lb ± 0.01 lb)
Gross Weight
0.408 kg ± 0.010 kg (0.90 lb ± 0.02 lb)
Packaging Dimensions
124 mm × 82 mm × 89 mm (4.88" × 3.23" × 3.50")

Environment
Operating Temperature
–30°C to +70°C (–22°F to +158°F)
Operating Humidity
95% (RH)
Storage Temperature
–30°C to +70°C (–22°F to +158°F)
Storage Humidity
≤ 95% (RH)



PARAMETERS

Parameter Name Parameter Value
Type
zoom
Technical applications
for security camera
Other characteristics
IR
Focal length
16 mm(0.63 in)
