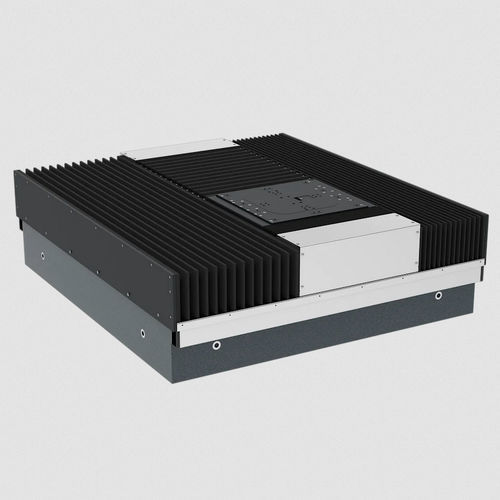

The EZ-0714 gantry stage is designed for positioning tasks with high accuracy requirements, making it particularly versatile in use. Due to the optional equipment with bellows, the stage is suitable for particle-laden processes as well as for laser machining processes. The coplanar arrangement of the axes and the gantry design ensure very high repeatability and positioning accuracy. All air bearings are magnetically preloaded. Cable management is designed to minimize mechanical interference. The iron-core synchronous motors enable an acceleration of up to 10 m/s2 and a travel speed of up to 1 m/s. The machine bed is made of granite. Extention by a Z Axis is possible. The XY Stage is available in 2 sizes, with a travel range of 500 x 500 mm or 500 x 600 mm.

Parameter Name	Parameter Value
Orientation	XY
Number of axes	2-axis
Stroke (mm)	500 - 600
Speed (mm/s)	1000 - 1000
Load (kg)	0 - 113
