Cross table

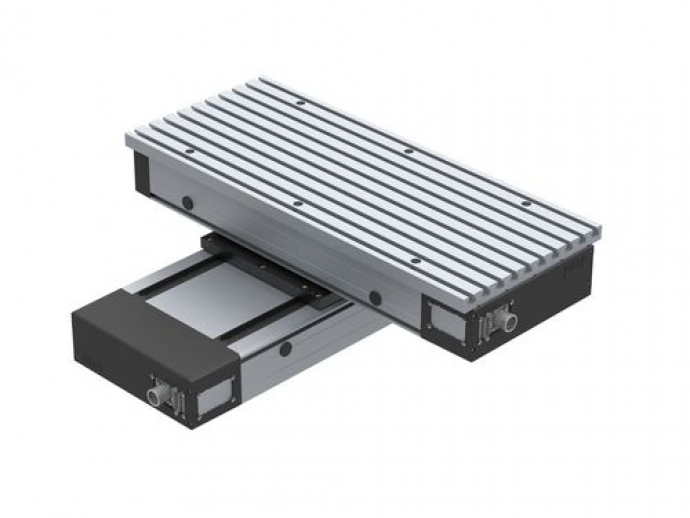

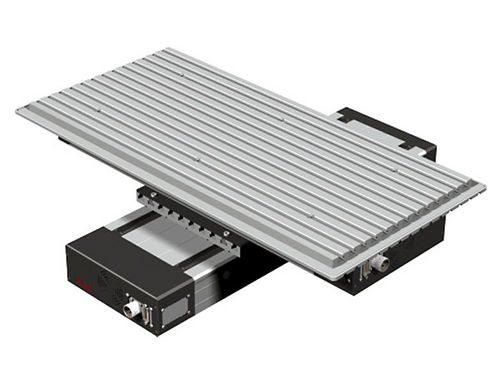

The cross tables 10/20 consist of two linear units LES 5, which are interconnected at right angles. The individual axes are driven by servo motor with a recirculating ball drive of 10 mm pitch.

To achieve very high load-bearing capabilities, each axis is fitted with four linear slots.

In addition to this standard design, it is possible to combine all LES 5 linear units with each other by means of the crossbench connection plates.

Features

Two isel linear units LES 5 adjustable for no play with integrated servomotor
Recirculating ball drive, pitch 10 mm
Travel:
X-axis: 210/310 mm
Y-axis: 210/310 mm

Options:

5 mm spindle pitch
Milled T-slot plate
step motor
Servo controller
Other travel

Parameter Name	Parameter Value
Orientation	XY
Type	motorized
Number of axes	2-axis
Other characteristics	standard ball
