XY positioning table

XY positioning table

XY positioning table

About

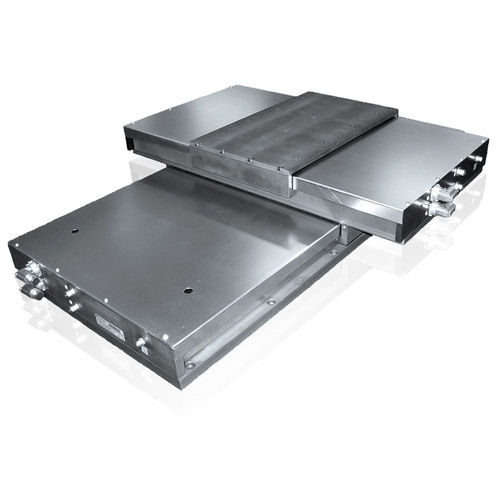

The XY positioning table, manufactured by Jenaer Antriebstechnik, is a 2-axes precision table equipped with a sheet metal sealing. It has a payload capacity of 50 kg, velocity of 1 m/s, positioning resolution of 0.2 µm, and travel dimensions of 500 mm x 350 mm. The table is commonly used for mechanical processes and light and heavy load applications.



PARAMETERS

Parameter Name Parameter Value
Orientation
XY
Type
motorized
Number of axes
2-axis
Other characteristics
precision
Stroke (mm)
350 - 500
Speed (mm/s)
500 - 500
