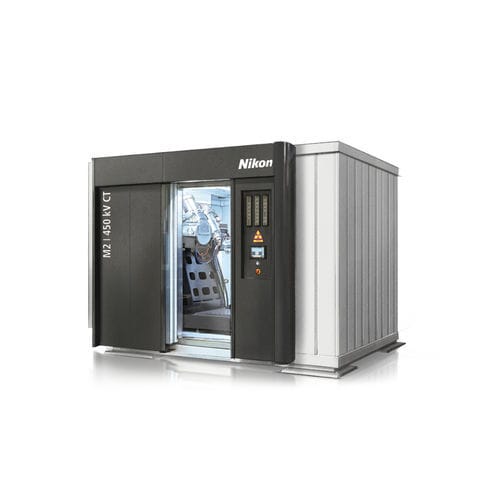

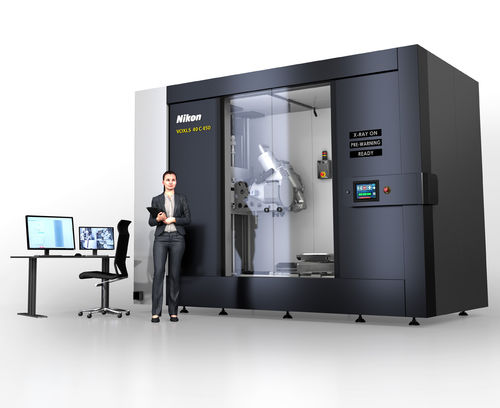

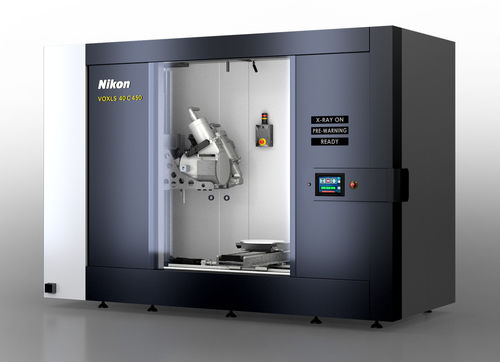

Nikon’s versatile, large-envelope X-ray and CT systems can inspect items of diverse size and density, internally and externally, enabling them to perform virtually limitless tasks within industry, inspection bureaux and academia.

A multitude of configuration options to meet your exact inspection requirements
Nikon’s large-envelope system range combines metrology grade, granite-based manipulator construction with a large scanning volume, multi-source flexibility, dual detector functionality and an extensive range of CT acquisition modes, enabling them to excel in any inspection environment, from R&D labs to the shop floor.

Highly Configurable Line-up

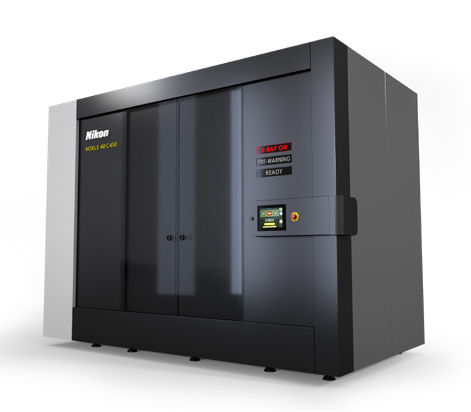

With 8 different X-ray sources, 7 detectors, 3 granite base lengths and 2 manipulator constructions to choose from, housed in either a single-piece cabinet, panelised room or pre-existing shielded enclosure, you’ll find a system configuration to match your requirements.

Multi-source Functionality

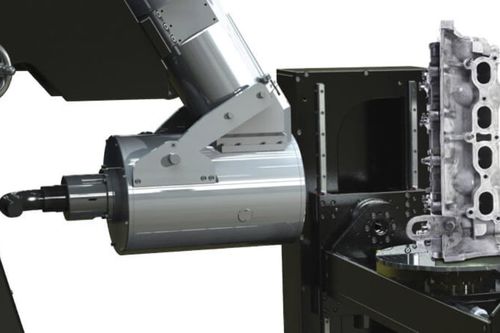

Select up to 3 X-ray sources from Nikon’s extensive microfocus range to ensure you have the optimum combination of penetrative power, resolution and scan speed for all your applications.

Dual Detector Flexibility
A choice of industry-leading, flat panel detectors with small pixel sizes and fast exposures, combined with Nikon’s unique CLDA, enables high-throughput CT and DR for all part types, plus advanced scatter correction for high-density parts.

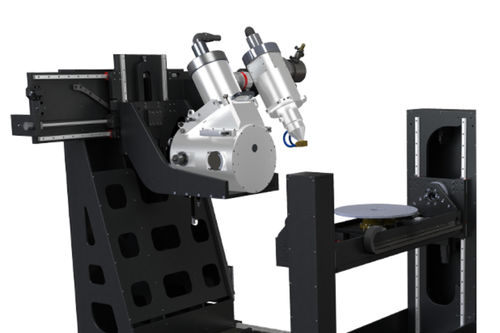

Metrology Grade Manipulator
Our granite-based manipulators are combined with rigid towers and precision motors and encoders. The resulting construction ensures superior mechanical and thermal stability, leading to enhanced positional accuracy and repeatability.

Parameter Name	Parameter Value
Technology	X-ray scanning CT
Operational mode	automatic
Applications	for production for the automotive industry for the aerospace industry for large parts
Other characteristics	computer-controlled
