X-ray Light Source:: - 210W/100KV Food X-Ray Inspector
Detecting Width:: - 400mm Food X-Ray Inspector
Detecting Height:: - 170mm
Accuracy:: - SUS Ball Φ0.3mm, SUS Wire Φ0.2*2mm
Transfer Speed:: - 10-70m/ Min -
HMI:: - 17 Inch Colorful Touch Screen
Connectivity:: - LAN Port, USB Port -
X-ray Leakage:: - 1 Millisievert / Hour
System: - Windows 7 Food X-Ray Inspector -
Power Supply: - AC220V±10% 50Hz(60Hz) 1.5kVA Max
Type: - Food X-Ray Inspection Systems
High Light: - Food X Ray Inspection Systems 17inch, 70m/Min Food X Ray Inspection Systems, Automated X Ray Inspection Service

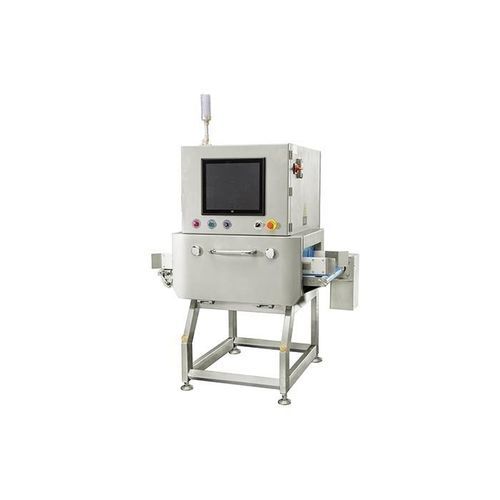

X Ray Inspection System Application:
It is used for detecting metallic and non-metallic material and defects in food, chemical, pharmaceutical industry. such as glass. ceramics, stones, bones, hard rubber and plastic.
X Ray Inspection System Features:
1. Up to 8 grades of image processing to achieve the best product adaptability and stability.
2. Able to shielding edge, desiccant, canned food and aluminum clamp for ham sausage.
3. X-ray leakage meets US FDA and European CE standards
4. Air conditioning and IP66.
5. Easy to dismantle and clean.
6. Optional rejection
X Ray Inspection System Configuration:
1. Frequency converter: Danfoss (Danmark)
2. X ray collector: Detection Technology(DT) (Finland)
3. Industrial air conditioning: Pfannenberg (Germany)
4. X ray: VJ GROUP (USA)
5. PLC: MITSUBISHI (Japen)
6. Limit switch: OMRON (Japen)
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Technology |
X-ray
|
| Operational mode |
automated
|
| Applications |
for the pharmaceutical industry
|
| Type |
quality
|
| Other characteristics |
fast
|
