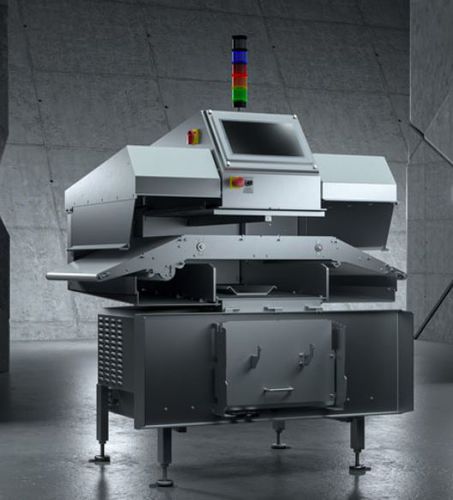

RAYCON D+ MX LW: Intelligent curtainless X-ray inspection system for light or sharp-edged packaged products

Curtainless machine
The RAYCON D+ MX LW reliably detects product defects such as missing, broken, or
misshapen products. Designed free of curtains, the RAYCON D+ MX LW is perfect for inspecting lightweight products.

Multi-lane
The RAYCON D+ MX can simultaneously inspect up to four lines of products, making it possible to inspect identical products from different production lines on a single device.

The RAYCON D+ MX LW is the standard model for inspecting lightly packaged products. Therefore, this unit is equipped with an innovative conveyor belt design that does not require curtains.

* Has a 0.8 mm detector with a detection accuracy from 0.6 mm
* Thanks to high belt speeds of up to 1.4 m/sec. up to 300 products per minute can be inspected in real time
* The RAYCON D+ MX LW has an X-ray source with 100 W (40 - 50 KV / 2,0 - 2,5 mA)

Our X-ray systems have been specially developed for use in the food industry and reliably
detect foreign bodies such as metals, glass, ceramics, stones, raw bones, PVC and many
other product defects. Through this precise inspection, conformity with all important
guidelines of the food industry such as IFS, BRC or FSSC 22000 are fulfilled and reliable
protection against complaints and recalls can be ensured. The RAYCON D+ MX LW is curtainless and therefore especially suitable for light or sharp-edged products.

Parameter Name	Parameter Value
Technology	X-ray
Applications	for the packaging industry
