RAYCON D+ HX LW: The high-end system for intelligent, curtainless x-ray inspection of lightweight or sharp-edged packaged products

New software filters
Newly developed software filters improve the detection accuracy for specific, low-density
contaminants. The Glass Increaser, for example, optimizes the detection of glass fragments, whi-
le the Bone Detector improves the detectability of fragments of bone and cartilage. In addition,
the Wire Finder can reliably detect smaller, elongated pieces of wire.

Sensitivity prediction
Sensitivity prediction makes it possible to automatically configure the best detection
sensitivity for stainless steel and glass. Data about hundreds of test pieces for glass and
stainless steel are stored in the software. This information is calculated along with the
product’s gray value image as if a product with a test piece were being recorded.

Self-monitoring
Integrated Compliance Monitoring ensures that specified sensitivities are continuous-
ly checked at predefined time intervals. Through regular controls of the detection
requirements, deviations are immediately detected, increasing the consistency of the
production process.

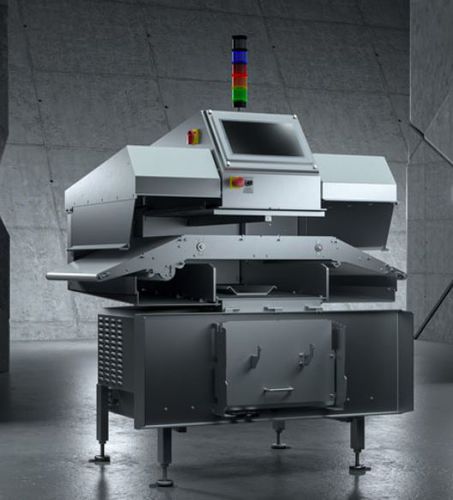

RAYCON D+ HX LW is the high-end model for inspecting light packaged products. Therefore, this device is equipped with an innovative conveyor belt design that does not require curtains. It achieves the highest detection accuracies.

* Has a 0.4 mm detector with a detection accuracy from 0.3 mm
* Thanks to high belt speeds of up to 1.4 m/sec. up to 300 products per minute can be inspected in real time
* The RAYCON D+ HX LW has an X-ray source with 200 W (40 - 60 KV / 3,3 - 5,0 mA)

Parameter Name	Parameter Value
Technology	X-ray
Applications	for the packaging industry
