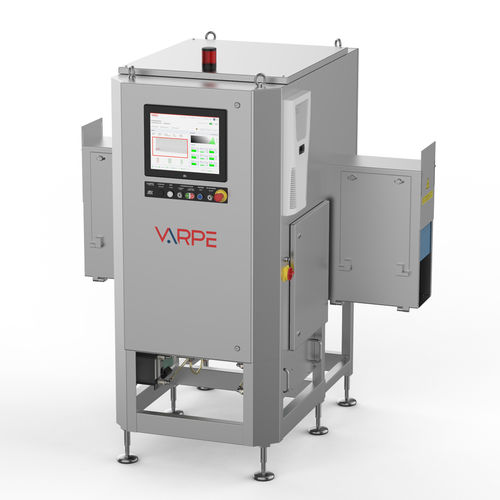

X-RAY INSPECTION EQUIPMENT WITH LATERAL VERTICAL BEAM
The new generation of X-ray inspection equipment of Varpe offers innovative global solutions for product inspection with lateral vertical beam, ensuring the safety and integrity of your production.

The double lateral vertical beam is a kind of geometry that uses two generators, combining vertical and lateral beams. This kind of inspection is particularly suitable for cases in which the variability of product types and formats is inevitable, for example, a packaging factory for precooked product (tall cans, small cans, etc.).

Its advanced X ray technology provides an excellent detection of ferric, non-ferric and stainless steel, glass, metal, calcified bones, spines and stones. They also offer simultaneous verification detecting damaged products, breakages, lack of units within the product and mass measurement.

All Varpe X-ray inspection equipment comply with the international safety standards that govern the emission of ionizing radiation.
They are listed under the certification of exempt equipment granted by the General Direction of Policies and Mines, with the approval of the Council of Nuclear Safety number NHMX224, published in the BOE No. 90 on April 15, 2017.

Industries:
Food & Beverages,  Agriculture, Livestock & Fisheries,  Chemical, Pharma & Cosmetic, Non-Food

Technical features
Production units / minute: Up to 1200
Maximum package size: Unlimited
Beam technology: Double vertical lateral beam
Linear array : High resolution of 0,8 to 0,4 mm per point & high speed scanning up to 200 m/minute

Parameter Name	Parameter Value
Technology	X-ray
Applications	for the pharmaceutical industry for the beverage industry
