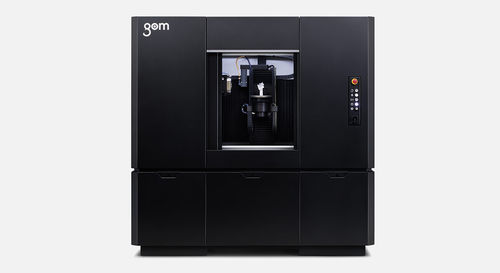

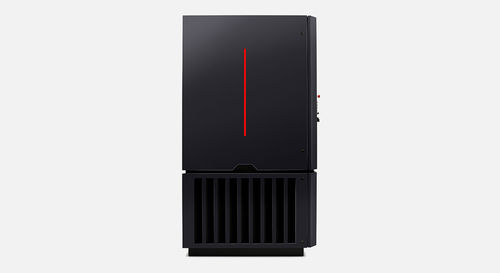

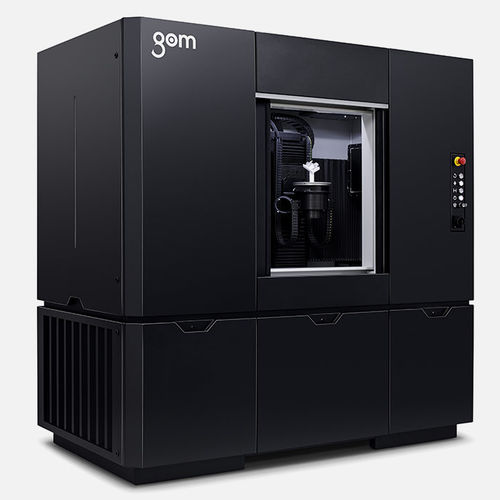

GOM CT Powerhouse of Resolution

Nondestructive 3D inspection of parts with internal structures

The GOM CT digitizes complex parts including the internal geometries at the finest level of detail. You get a complete 3D image for GD&T analyses or nominal-actual comparisons. The metrology CT particularly excels in digitizing small plastic and light metal parts.
Extremely high resolution

thanks to a 3k X-ray detector (3008 x 2512 pixels)
High precision

due to mathematical modeling of the measuring room
Automatic object positioning

via 5-axis kinematics and live view in the software
All-in-one software

for a consistent, fast workflow

Reveals what remains hidden with other systems

When digitizing a part, the GOM CT achieves an outstanding sharpness of detail: On the one hand, because it uses a high-resolution 3k X-ray detector for acquiring measuring data and on the other hand, because each part is measured in the best possible measurement position and thus always in the highest possible resolution. You can see the result below: on the left, measuring data generated with the GOM CT and on the right the usual standard.

Parameter Name	Parameter Value
Technology	X-ray 3D
Operational mode	automatic
Applications	for production
Type	measurement
Other characteristics	fast high-resolution
