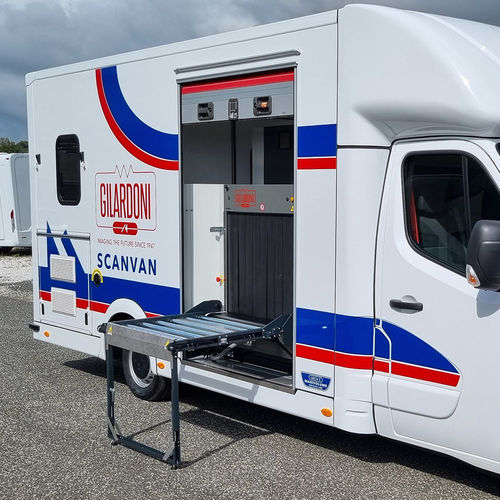

X-ray inspection system FEP SCANVAN 975

X-ray inspection system FEP SCANVAN 975

X-ray inspection system FEP SCANVAN 975

About


X-RAY INSPECTION SYSTEM
Type: FEP ME 975 with operator workstation

VEHICLE
Manufacturer: IVECO or equivalent, Type: 50C15

■ Lowest roller height from the floor
■ Air controlled suspensions
■ Service lights
■ Dual batteries
■ Wide operator area
■ Standard driving licence required

VAN
Dimensions: L 7200 mm, W 2170 mm, H 2500 mm, Equipment: Rolling shutter for equipment room, lockable door for operator area, windows, fluorescent lights, mobile separation between equipment and operator room Tested and approved by Italian Civil Motorization

CONVEYOR BELT
Handling: Tilting, with manual handling
Balancing: Gas springs
Maximum Load: 205 Kg
Maximum slope: 25 degrees
Belt speed: 0.2 m/sec.
Belt width: 900 mm
Locking: In vertical position with safety-clutch



PARAMETERS

Parameter Name Parameter Value
Technology
X-ray
Applications
  • for the aerospace industry
  • for large parts
  • for wraps
Type
  • for defect detection
  • waste
Other characteristics
  • fast
  • rugged
  • custom
  • heavy-duty
  • portable
  • high-resolution
