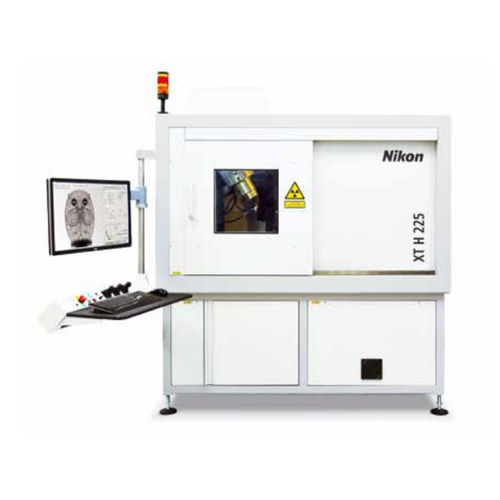

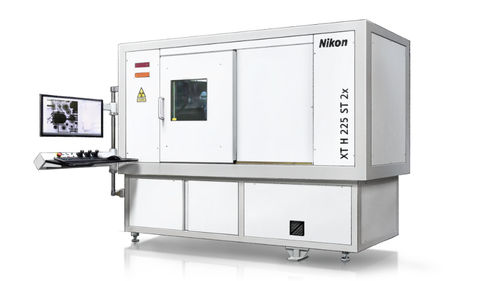

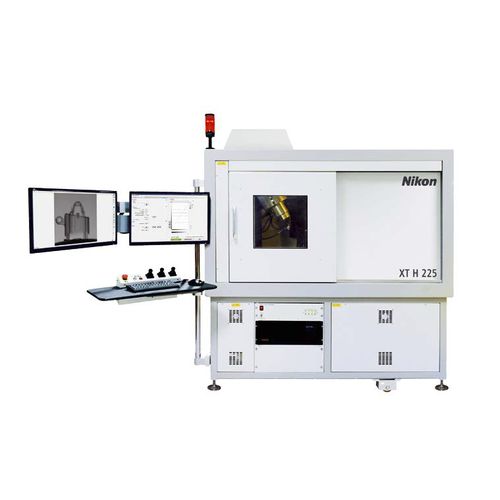

Nikon's versatile microfocus CT systems for high-resolution inspection of components, ranging from tiny plastic connectors up to aluminium castings for R&D, failure analysis and production quality control.

Versatile Solutions for the Most Demanding Inspection Applications

These systems combine the versatility needed in the lab with unique features like the high-flux Rotating.Target 2.0, Half.Turn CT acquisition mode and Auto.Filament Control to shorten cycle time and improve uptime when used for shop floor series inspection.

Flexibility When You Need It
With the choice of source, targets, CT scanning strategies and options such as motorised source-to-detector distance adjustment, the 225/320kV systems are versatile and accommodate a wide range of inspection tasks.

One Source, 5 Target Options
Select the right target for your application: from the transmission target with sub-micron feature recognition, to the world’s only Rotating.Target 2.0 for outstanding performance, to the 320kV target for denser samples.

Unique 225 kV Rotating.Target 2.0
Allows continuous operation up to 450W with up to three times higher resolution for the same power, or three times faster data collection for a given resolution.

Parameter Name	Parameter Value
Technology	X-ray computed tomography
Sector	industrial, for the electronics industry, for the automotive industry, for the aerospace industry
Other characteristics	measurement high-resolution
Output power	225 W, 450 W (0 hp)
Convey weight capacity	15 kg, 50 kg (33 lb)
