About
North Star Imaging applications specialists will help you select the best combination of X-ray source and X-ray detector for your application. Whether you need to penetrate through several inches of thick aluminum castings or focus on a gold bond wire the thickness of a human hair, we can configure the X3000 to work for your needs.
SYSTEM CAPABILITIES
Geometric Magnification: >2000x
Overall Maximum System Resolution: <500 nm
CT SOFTWARE
Comprehensive acquisition, processing and archival program with user-friendly interface
High performance image processing and measurement functions
Non-proprietary multiple image format output/input. DICONDE compliant
Automated program functions for fast analysis
Multiple window interface for display of raw image, processed image, density data, etc.
Computed Tomography acquisition module
Optional 3D Computed Tomography calibration, reconstruction and visualization
Optional 4D Computed Tomography
Available with vorteX, subpiX, and mosaiX

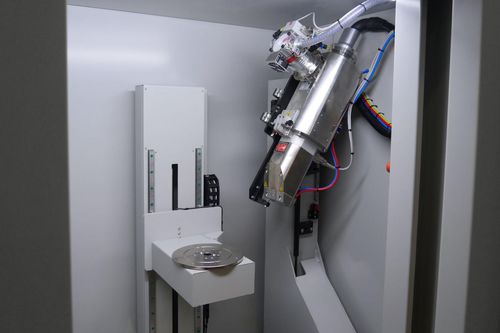

X-RAY SOURCE
Voltage Range: 10 kV to 225kV
Minimum Focal Spot Size: <500 nm
X-ray Tube Types: Nano-focus, Micro-focus, Mini-focus

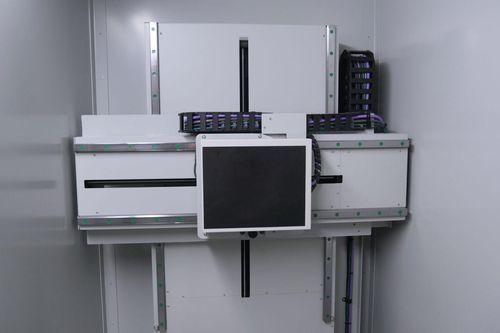

X-RAY DETECTOR
Our applications specialists will recommend the best combination of signal to noise ratio, contrast sensitivity, and efficiency.
Digital X-ray Detector Types: Flat Panel (DDA)
Grade Options: Standard 14 bit, Premium 16bit
Detector Size: 40 cm x 40 cm [16 in x 16 in]
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Technology |
|
