SX2-2554W Type
Completely different from existing X-ray inspection systems! Innovative waterproof and dustproof function are achieved!

Operable in various environments
● Overall system conforms to IP66. No optional cooling unit is needed and the system can be operated in a wide variety of environments.

Sealed cooling system is utilized
● As the complete sealing is achieved, damages to the electric system units inside the machine is reduced due to moisture or dust. It can prolong the lifetime of its electric boards, switches, etc.

Comparison of waterproof range
● Due to IP66, it is washable and can be kept sanitary. It prevents your production line from contaminating by bacteria.

Compact design and low price
● As the cooler does not need to be installed, more compact design and lower price are achieved.

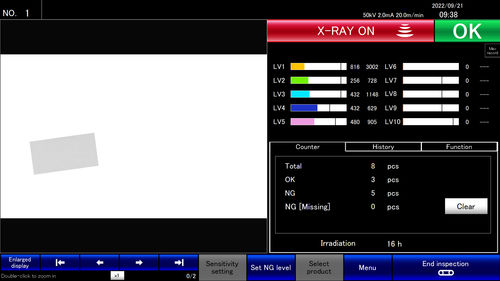

Friendly operation system
● Color touch panel ensures easy operation. Faulty levels can also be operated intuitively.

High sensitivity
● Carrying original software and algorithm, this scans the foreign objects in your products as a faulty one. SX2-2554W can reduce the risk of your product recall due to physical contaminant.

Able to carry CE Marking

Parameter Name	Parameter Value
Technology	X-ray
Applications	packaging line for food processing line
Sector	industrial, for the pharmaceutical industry, for the food industry, for the packaging industry, for the medical industry, for the cosmetics industry
Other characteristics	measurement in-line non-contact belt conveyor waterproof
Output power	Min.: 60 W (0 hp)Max.: 150 W (0 hp)
Width inspection range	Min.: 0 mm (0 in)Max.: 240 mm (9 in)
Height inspection range	Min.: 0 mm (0 in)Max.: 120 mm (5 in)
Convey weight capacity	Max.: 5 kg (11 lb)
