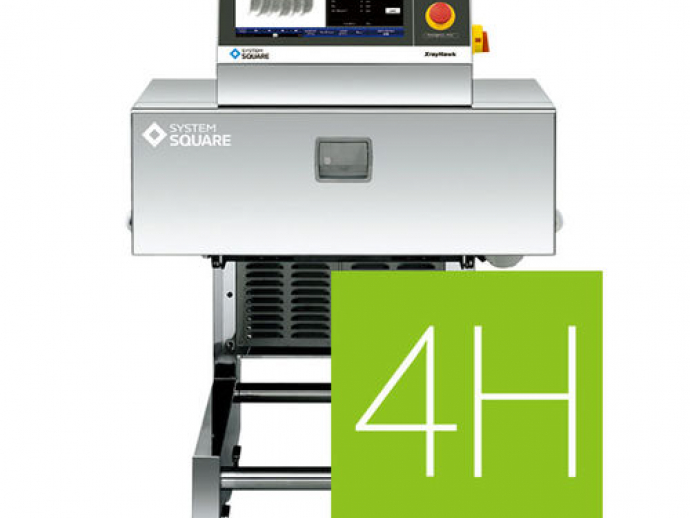

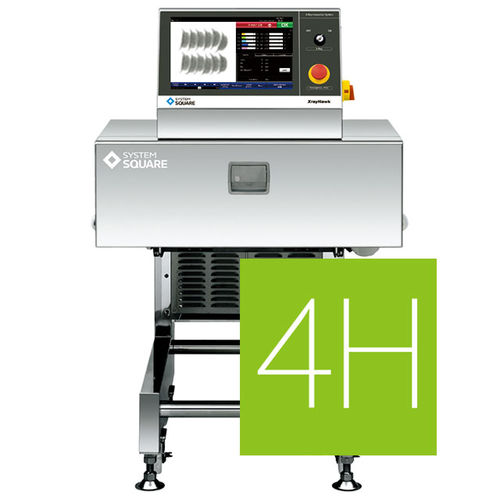

SX2-2554HW
Highly stable relative mass inspection achieved with a new X-ray sensor

Stable mass inspection achieved with a new X-ray sensor
The relative mass inspection can be made stably even for a lightweight and large number of products such as individually-packaged ones and high-speed transportation which cannot be supported by the auto checker. For example, when inspecting dressing in a small bag, the dispersion observed in the conventional systems is greatly suppressed.

Simultaneous inspection of multiple items available

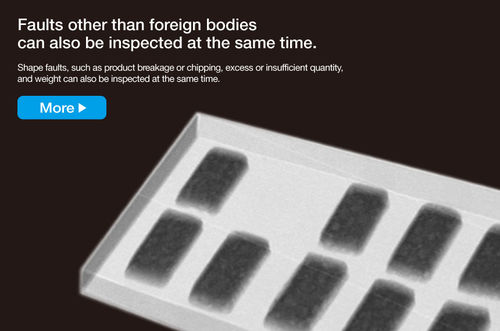

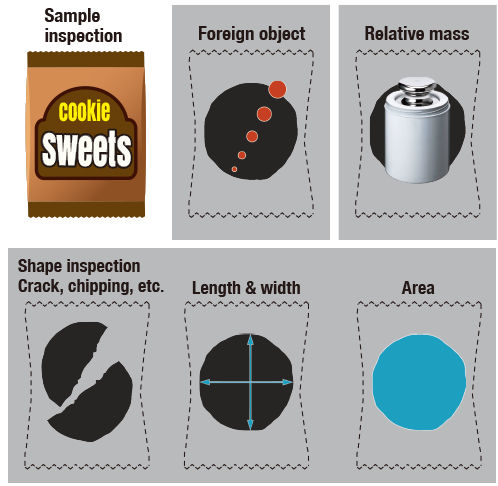

“Foreign objects” included in the product, “relative mass” and “shape” excluding the package can be inspected simultaneously. In the inspection of the shape, the system contributes to quality improvement by inspecting cracks, chippings, length/width, area, and other items.

Able to carry CE Marking

Parameter Name	Parameter Value
Technology	X-ray
Applications	packaging line for food processing line
Sector	industrial, for the pharmaceutical industry, for the food industry, for the packaging industry, for the medical industry, for the cosmetics industry
Other characteristics	measurement high-speed in-line sorting non-contact belt conveyor waterproof automatic
Output power	Min.: 60 kW (82 hp)Max.: 150 kW (204 hp)

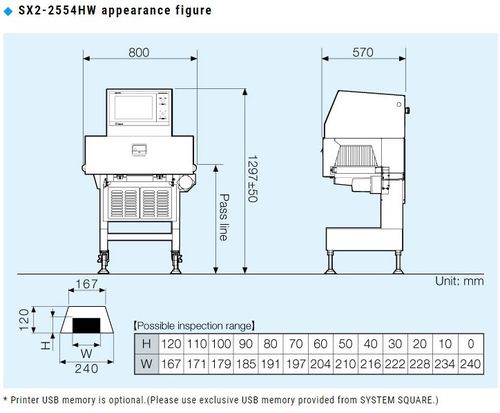

Width inspection range	Min.: 0 mm (0 in)Max.: 240 mm (9 in)
Height inspection range	Min.: 0 mm (0 in)Max.: 120 mm (5 in)
Convey weight capacity	Max.: 5 kg (11 lb)
