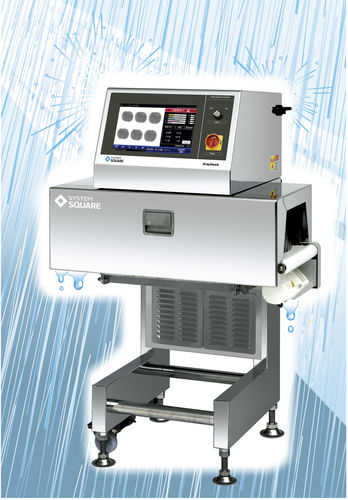

SX2-2353HW
High sensitivity and high stability achieved with the new X-ray sensor

* High sensitivity achieved with the new original X-ray sensor 3H

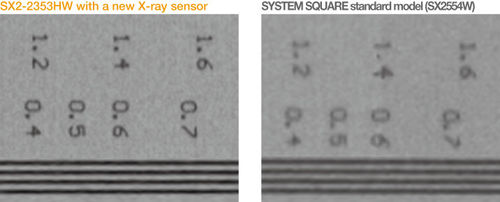

In the system with the new X-ray sensor (SX2-2353HW), a further high-sensitivity inspection has been achieved compared with the SYSTEM SQUARE standard system (SX2-2554W). By comparing the inspection images, it can be confirmed that the new image is sharper.

* More stable high sensitivity achieved
With the system with the new X-ray sensor (SX2-2353HW), you can detect foreign objects more strongly. As a result, you can make the high-sensitivity inspection stably. In the in-house test, the new system has detected the test pieces smaller by one size compared with the conventional system (SX2-2554W).

Able to carry CE Marking

Parameter Name	Parameter Value
Technology	X-ray
Applications	packaging line for food processing line
Sector	for the pharmaceutical industry, for the food industry, for the packaging industry, for the medical industry, for the cosmetics industry
Other characteristics	measurement high-resolution high-speed in-line non-contact waterproof automatic
Output power	Max.: 150 kW (204 hp)Min.: 60 kW (82 hp)
Width inspection range	220 mm (9 in)
Height inspection range	120 mm (5 in)
Convey weight capacity	5 kg (11 lb)
