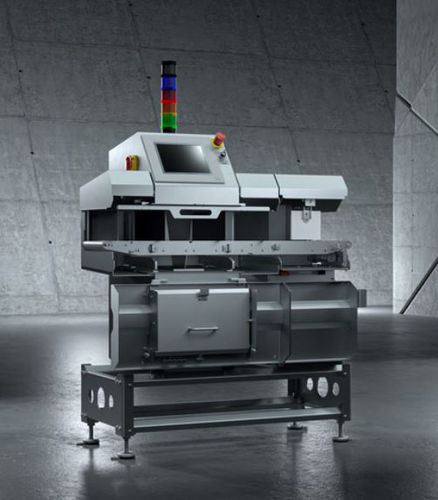

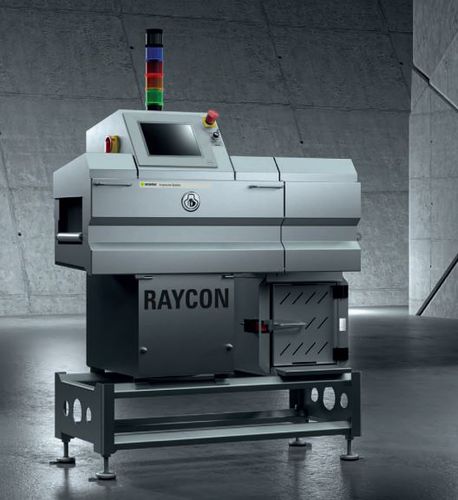

RAYCON EX1: An entry-level system for intelligent x-ray inspection of packaged products

Compact and effective
With a compact installation length, RAYCON EX1 fits into any production line. With an integrated exit signal, RAYCON EX1 has a total length of only 800 mm, or 1,200 mm with an
integrated rejection unit.


Auto-learn function
With the Auto-Learn function, RAYCON EX1 offers a simple and intuitive operation. The configuration of various filters is performed by the device itself, considerably reducing effort on the part of the user. Using five product samples, autolearning takes fewer than two minutes for
each new product.

Detects product defects
The RAYCON EX1 reliably detects product defects such as missing, broken, or misshapen products.


Has a 0.8 mm detector with a detection accuracy from 0.6 mm
Thanks to high belt speeds of up to 1.4 m/sec. up to 220 products per minute can be inspected in real time
The RAYCON EX1 has an X-ray source with 60 W (40 - 50 KV / 1,25 - 1,5 mA)

* Conformity & Accuracy
* Safety for people & product
* Simple operating concept
* Hygienic design concept
* Efficiency in all areas
* Reliable and fast service

Our X-ray systems have been specially developed for use in the food industry and reliably
detect foreign bodies such as metals, glass, ceramics, stones, raw bones, PVC and many
other product defects. Through this precise inspection, conformity with all important
guidelines of the food industry such as IFS, BRC or FSSC 22000 are fulfilled and reliable
protection against complaints and recalls can be ensured.

Parameter Name	Parameter Value
Options	X-ray
