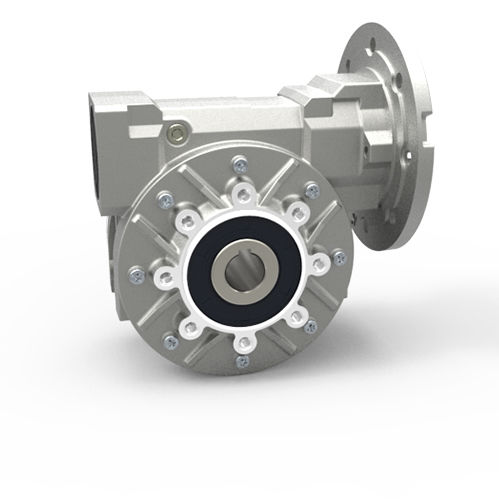

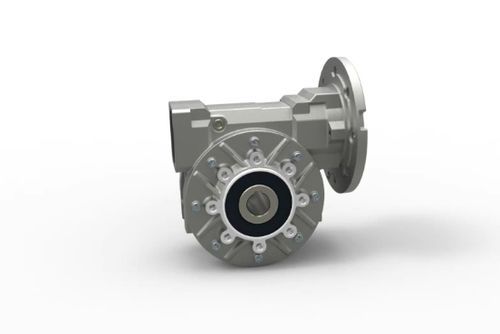

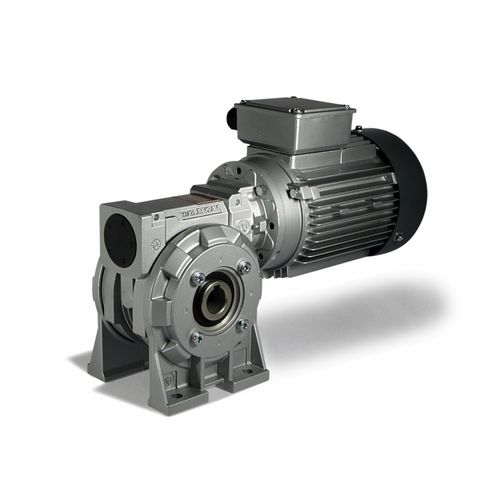

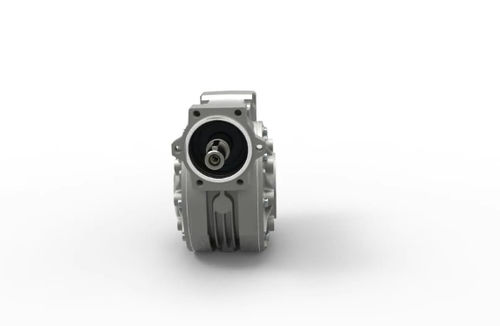

The RS Series of worm gearboxes are designed to be the ideal solution for applications that require small or medium power ratings for their drive.

Main Components
• Input and output oil seals in NBR
• Housing and covers in die cast aluminium (till size 85) and grey cast iron (sizes 110, 130 and 150)
• Worm wheel in bronze
• Bearings with ball or conical roller
• Input flanges in die cast aluminium
• Motor flexible coupling
• Gears in cemented and hardened alloy steel
• Support hub in grey cast iron
• Synthetic oil for lifetime lubrication of the gears
• RCA oil seal in NBR
• Worm shaft in alloy steel

Plus
• Low maintenance and management costs
• Modular concept
• Extended lifetime with excellent reliability
• Easy installation and maintenance
• Long life lubrication
• Versatility of use

Special Solutions
For Application Sectors
• Silicone, Viton or special seals for high/low temperatures and food & beverage sector
• Anodization for chemical and ship-building/marine sectors
• Special lubricants for high/low temperatures and food & beverage sector
• Non-standard breather plugs for high/low temperatures
• Special paint finishes for chemical, ship-building/marine and food & beverage sector
• ATEX version for potentially explosive environments

For Nema e servo motors
• Flanges and couplings for servomotors
• Output holes in inches
• Input couplings for NEMA motors

Parameter Name	Parameter Value
Type	worm
Shaft orientation	right angle
Torque (Nm)	500 - 1000 20 - 50 50 - 100 1000 - 2000 2000 - 5000
Shaft configuration	hollow-shaft
Number of stages	single-stage
Applications	for agricultural machinery drive building wheel for food industry machinery shaft
Other characteristics	modular motor ATEX food
Rotational speed (rpm)	1400 - 1400
Power (W)	500 - 24900
Gear ratio (unit)	5.1 - 100
