Characteristics
Product type
• Ready to install, perfectly suited for high precision movement

Characeristics
• Rotary table for high precision movement and measuring
• Complete with motor and CNC-control unit (optional)

Diameter range
• graded from 125 - 400 mm

In detail
Characreristics

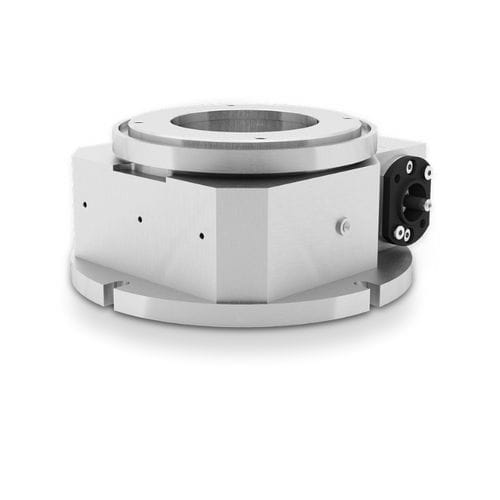

Franke rotary tables of type LTB are open-center, ready-to- use positioning units. They are highly resilient, lightweight (aluminium housing) and deliver outstanding ATR accuracy and discrimination. Franke rotary tables of type LTB are versatile in use and are primarily suited to movement and positioning tasks in the fields of measurement, testing and orientation.

Parameter Name	Parameter Value
Operation	motor-driven
Configuration	horizontal
Other characteristics	CNC with ball bearing worm gear
Diameter (mm)	125 - 400
