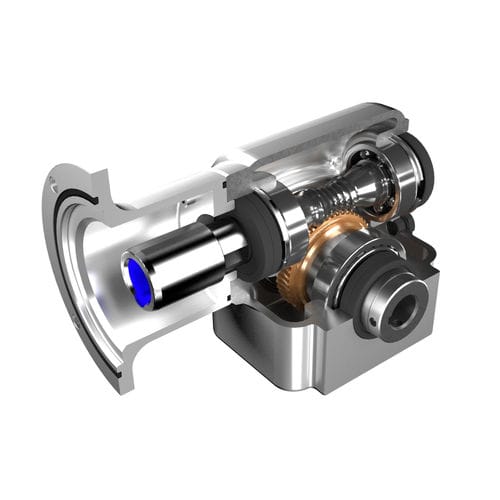

The Accudrive Series W gearbox, high precision servo gearboxes are ideal for your most demanding motion control applications. Inside the Accudrive Series W is Cone Drive’s true double-enveloping worm gear set. Offered in standard, low and zero backlash versions, you can always find the right solution for your application.


Key Features

Sizes (Center distance-mm): 38, 51, 64, 76, 89
Standard Reduction Stages: Single
Interface: Inch or metric
Ingress Protection: IP65
Input Options: Solid shaft, Nema + Servo motor interfaces
Output Shaft Options: Solid, hollow shaft, shrink disc; end mount
Backlash Options: Standard, Low, Zero
Mounting Options: Universal mount

Parameter Name	Parameter Value
Type	worm
Shaft orientation	right angle
Torque (Nm)	500 - 1000
Shaft configuration	hollow-shaft solid-shaft
Number of stages	single-stage
Performance	precision low-backlash
Other characteristics	for machine tools mounted custom IP65 universal
Gear ratio (unit)	50 - 50
