Troi Drives are high-performance worms that achieve both high transmission capacity and efficiency byusing a troidal worm gear.

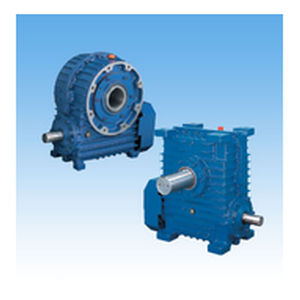

Two types of housings are available: a solid output shaft type with foot mounting and a hollow output shaft type with on-shaft and flange mounting.
Ensures ultimate compactness and weight saving for all layouts.

Features
・Troidal Worm Gears are high performance wormsthat transfer the load with their entire tooth surface. This gives them a higher load transfer capacity and ideal for compact machines.
Compared to general-purpose cylindrical worm gears, Tsubaki Troi Drive gears are two sizes smaller. In other words, Tsubaki Troi Drive gear boxes are 1.5 to 2 times higher in torque capacity when compared to others in same sizes.
Silent and smooth operation
Troi Drives with extremely improved tooth profile accuracy provides quiet and smooth rotation.

Parameter Name	Parameter Value
Type	worm cylindrical
Shaft orientation	right angle
Torque (Nm)	10000 - 10000 500 - 1000 1000 - 2000 2000 - 5000 5000 - 10000
Performance	high-performance
Applications	transmission drive shaft
Other characteristics	compact flange with flange foot-mounted
