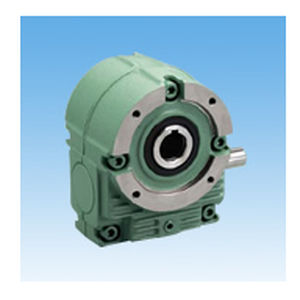

Uses a dedicated case for on-shaft and flange mounting, contributing to equipment simplification.
In addition to a selection between solid and hollow output shafts, Power-Lock and taper bush shafts are available.
Saving you manpower and time for assembly.


Features
・Well-balanced in capacity, efficiency and cost
Years of experience in designing tooth surface with unsurpassed torque transfer performance went into making a well-balanced cylindrical worm gear in terms of performance, efficiency, and cost.

・On-shaft and flange mounting style for more simplified equipment design.

・Selection ranging from small size to medium size (center distance: 25mm-200mm)

・SWJ series uses a dedicated case that can be installed in any direction.

Parameter Name	Parameter Value
Type	worm cylindrical
Shaft orientation	right angle
Torque (Nm)	200 - 500 500 - 1000 1000 - 2000 2000 - 5000 5000 - 10000
Applications	transmission shaft
Other characteristics	flange with flange
