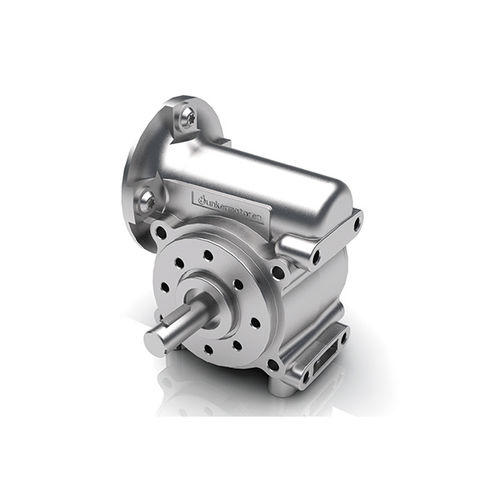

» Housing made of high-tensile zinc die-cast
» Worm wheel made of brass
» Output shaft with ball bearings on both sides, shaft output to the left
» Optionally with output shaft to the right or double shaft output on demand

Gear ratio - 5 : 1
Number of stages:1
Nominal output torque Ncm:200
Max. efficiency - %:70
Max. axial load - N:300
Max. radial load - N:350

Parameter Name	Parameter Value
Type	worm
Shaft orientation	right angle
Torque (Nm)	1 - 5
Applications	for shaft
