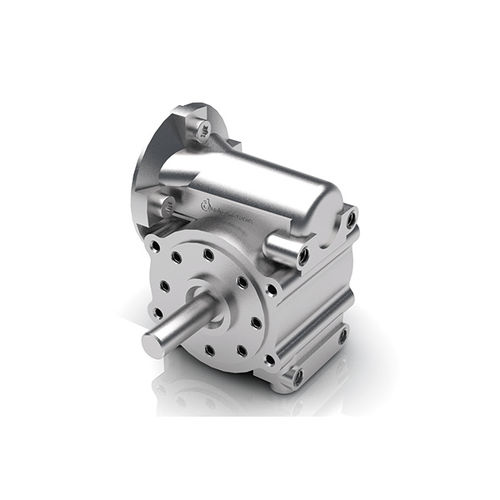

» Housing made of high-tensile die-cast
» Worm wheel made of brass
» Standard output shaft with ball bearings on both sides, shaft output to the left
» Shaft output to the right or double shaft output on demand

Gear ratio - 8 : 1
Number of stages :1
Nominal output torque Ncm:150
Max. efficiency - %:60
Weight of gearbox kg:0.3
Max. axial load - N:150
Max. radial load - N:250

Parameter Name	Parameter Value
Type	worm
Shaft orientation	right angle
Torque (Nm)	1 - 5
Applications	for shaft
