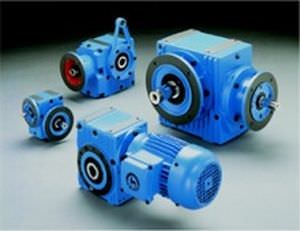

Our worm gears and helical worm gears / motors are high-performance gears with a very high degree of efficiency. All worm shafts are made from case hardened alloy steel and the flanks are precision ground. The worm wheels are made from centrifugally cast bronze. Helical worm gears are equipped with a helical gear. Worm gears with shrink disc, torque limiter, as well as adjustable backlash designs are also part of our standard product range.

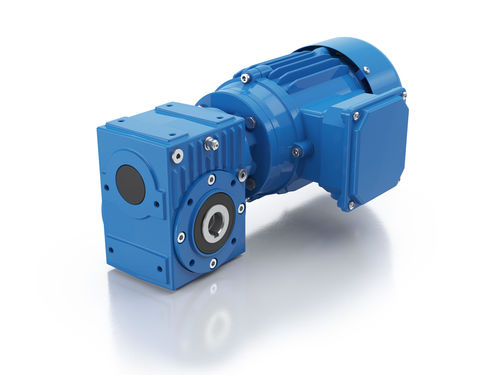

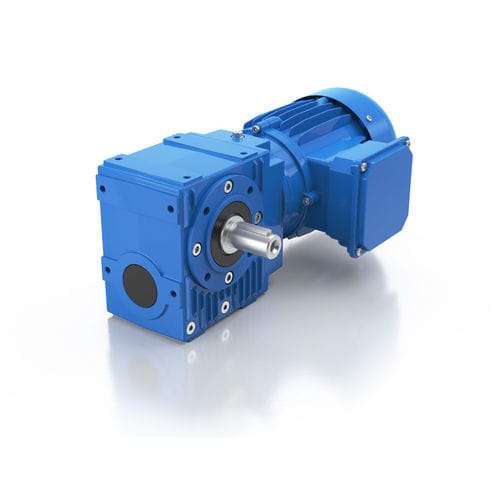

Our worm gearboxes and helical worm gearboxes type S and SS are high-Performance gearboxes in universal design. The housings are made from high quality cast iron. The rugget walls and inner ribbing ensure extremely torsional stiff and noise dampening housings. The external ripping provides a rapid heat dissipation.

Characteristics
Optimised size/performance ratio
Designed for permanent operation under rough circumstances
Extreme torsional resistance and low noise
Housing produced from high quality grey cast iron with rugged walls and internal ribbing
Case hardened worm shafts and worms with precision ground flanks
Worm wheels produced from centrifugally cast bronze
Space saving angular drive
Helical worm gearboxes equipped with helical gear wheel

Options
Basic mounting, flange mounting or universal design
Output shaft available as solid shaft or hollow shaft
Shrink disc, torque limiter, as well as adjustable backlash
Second shaft end for fitting encoders or brakes
Torque arm
IEC standard motor mounting
Free input shaft
ATEX specification

Parameter Name	Parameter Value
Type	worm
Shaft orientation	right angle
Torque (Nm)	100 - 200 200 - 500 0 - 0.1 20 - 50 50 - 100 500 - 1000 0.2 - 0.5 1 - 5 1000 - 2000 5 - 10 10 - 20 0.5 - 1 5000 - 10000 0.1 - 0.2
Performance	precision high-performance
Other characteristics	for robotics
Power (W)	9200 - 9200
