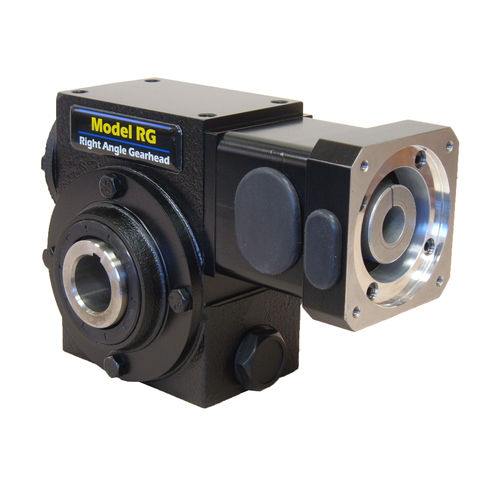

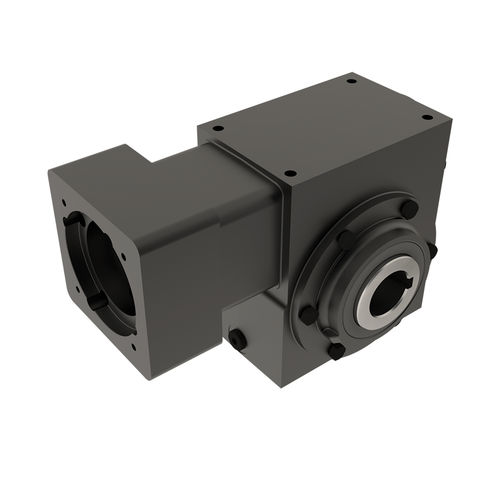

The Accudrive Series RG gearbox is a compact right angle precision drive providing an economical solution for your general automation applications. Built around the Cone Drive double-enveloping worm technology, the Accudrive Series RG is available in standard and low backlash options.

Key Features
Sizes (center distance-inch): 1.5, 2.0, 2.5, 3.0 and 3.5
Standard Reduction Stages: Single
Interface: Inch or Metric
Gear Ratios: 5:1 to 60:1; custom ratios available
Ingress Protection: IP65 (servo only)
Input Options: Solid shaft, Nema + Servo motor interfaces
Output Shaft Options: Solid, Hollow, Shrink Disc
Backlash Options: Standard, Low
Mounting Options: Universal Mount, Output Flange

Parameter Name	Parameter Value
Type	worm
Shaft orientation	right angle
Torque (Nm)	500 - 1000
Shaft configuration	hollow-shaft solid-shaft
Number of stages	single-stage
Performance	precision low-backlash
Applications	drive shaft
Other characteristics	compact industrial flange custom IP65 universal
Gear ratio (unit)	50 - 50
