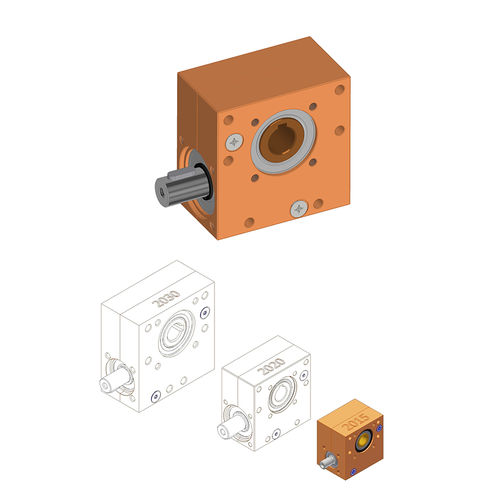

Worm gear Ket-Motion 2015
with feather key groove

Universally usable and maintenance-free worm gear with an axis distance of 15 mm and with nine different reduction ratios. The housing is encapsulated to prevent the escape of grease and the ingress of dust. The worm gear pair is left-handed. The direction of rotation on the shaft is arbitrary.

Special features

Axis distance 15 mm
Maintenance-free grease lubrication
Aluminium housing, anodized , orange in standard, other colors possible to suit customer requirement
7 reduction ratios from 1:1 to 47:1
Backlash on the drive shaft 1° ± 0,5°
Duty cycle of 20 % at 5 min (1 min ON, 4 min OFF)
Service life of 1,000 hours with:
full load and
input speed of 500 rpm and
duty cycle 20% with 5 min and
ambient temperature 20 °C

Variant key

Variant 2015.00-S0PRXX with one drive pin
Variant 2015.00-D0PRXX with through going axis

Technical notes

Permissible force on drive side: FA= 200 N when FR= 0 N and FR= 200 N when FA= 0 N
The positions of the feather keys as standard in variant D are not in line. Possible on enquiry if needed

Parameter Name	Parameter Value
Type	worm
Shaft orientation	right angle
Torque (Nm)	1 - 5 0.5 - 1 0.2 - 0.5
Shaft configuration	solid-shaft
Performance	maintenance-free
Other characteristics	aluminum
Rotational speed (rpm)	100 - 100
Backlash (°)	1 - 1
