High Modularity

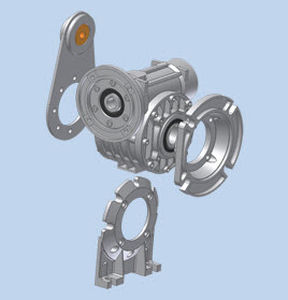

Worm gearboxes suitable for the modular assembling of flanges, feet and torque arm.
High Versatility

12 sizes with wide range of different mounting positions.
High Performances

Max input power 55 kW.
Max torque 3000 Nm.
Ratios up to 100/1.
High Reliability

Up to size 80, housing built in pressure die casting aluminium, designed in order to guarantee lightness, strength and stiffness.
For sizes larger than 80 we supply a sturdy cast iron housing that is also suitable for heavy-duty applications.

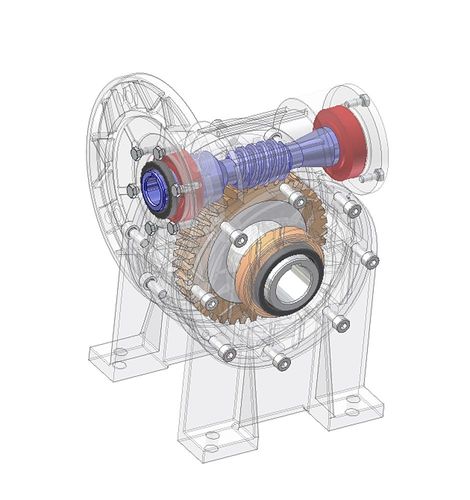

ZI teeth profile on worms and wormwheels for a silent working without vibrations.
Optional Accessories

Torque limiter
Double extension input shaft
Single/double solid output shaft
Torque arm

Parameter Name	Parameter Value
Type	worm
Shaft orientation	right angle
Torque (Nm)	2000 - 5000
Performance	high-performance
Applications	for heavy-duty applications
Rotational speed (rpm)	1080 - 1080
Power (W)	55000 - 55000
