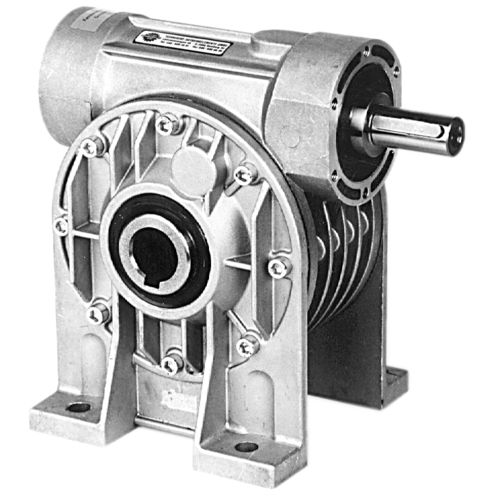

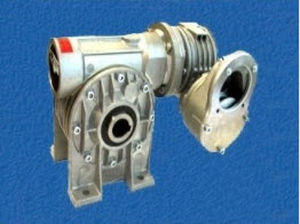

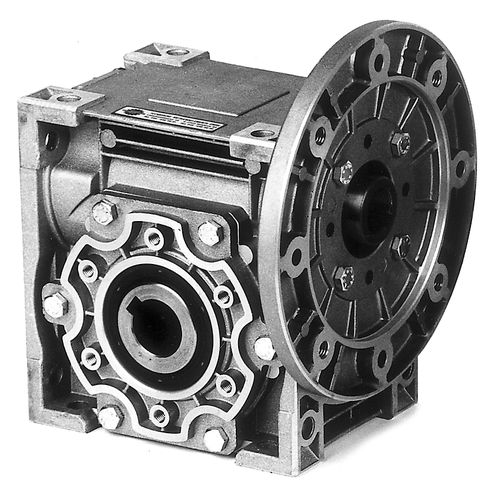

Our worm gear units have been developed based on a modular principle, taking into special consideration appropriate designs and dimensions. The basic series includes 11 models with up to 7 different designs, with or without drive flange, with or without mounting feet, and can also be mounted in any position due to variable mounting. The selection of materials conforms to the demanding requirements of the harsh conditions of long-term operation.

material

housing: aluminium / grey cast iron
worm: steel case-hardened and polished
worm gear: centrifugally cast bronze, wear-resistant
bearings: ball bearings

Parameter Name	Parameter Value
Type	worm
Shaft orientation	right angle
Torque (Nm)	1000 - 2000 5 - 10 2000 - 5000
Applications	drive
Other characteristics	modular mounted
Rotational speed (rpm)	0 - 1400
