High torque in a right angle worm gearbox solution.

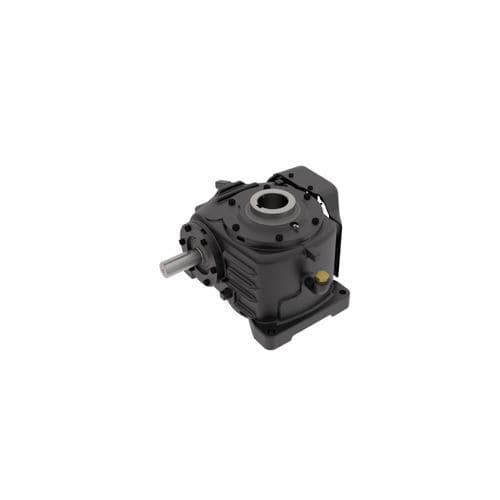

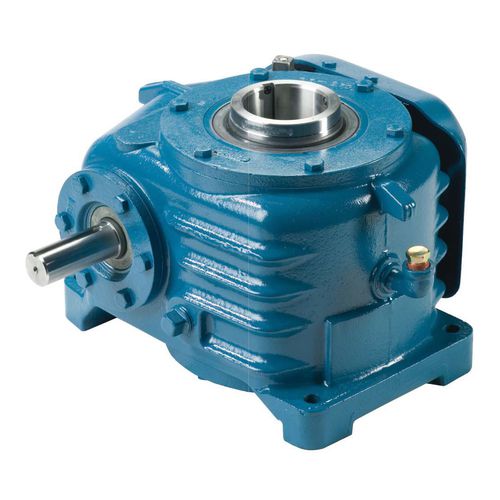

The Series HP worm drive gearbox was engineered and designed for applications that require extremely high torque and precision in a quiet, compact package. The Series HP worm gear reduction box has higher shock resistance and greater endurance to withstand heavy starting and stopping loads. This rugged 90 degree gearbox features our true double enveloping worm gear technology.

Key Features
Sizes (center distance-inch): 1.5-28
Standard Reduction Stages: Single, double, triple
Interface: inch or metric
Input Options: Solid shaft, Nema interface
Output Shaft Options: Solid, hollow, + custom
Backlash Options: Standard, low, zero
Mounting Options: Dedicated mounting orientation

Parameter Name	Parameter Value
Type	worm
Shaft orientation	right angle
Torque (Nm)	10000 - 10000
Shaft configuration	hollow-shaft solid-shaft
Number of stages	single-stage
Performance	high-precision
Applications	for heavy-duty applications drive
Other characteristics	compact rugged custom double
Gear ratio (unit)	5 - 343
