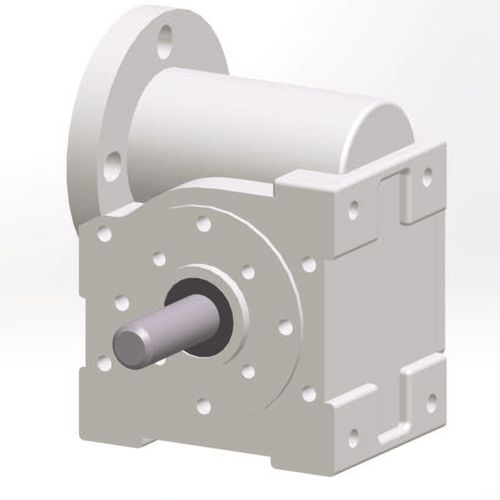

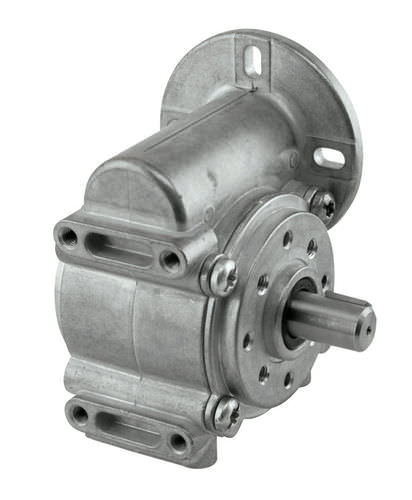

General: Single-stage worm gear for use in combination with our motors. Lifetime grease lubrication
Housing: Zinc diecast
Output: Power deviation 90°, second shaft end possible. Self locking on higher gear reduction (η < 50%)
Options: Second shaft end
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
worm
|
| Shaft orientation |
right angle
|
| Torque (Nm) |
1 - 5
|
| Number of stages |
single-stage
|
| Other characteristics |
for motors
|
| Rotational speed (rpm) |
4500 - 4500
|
| Gear ratio (unit) |
3 - 68
|
