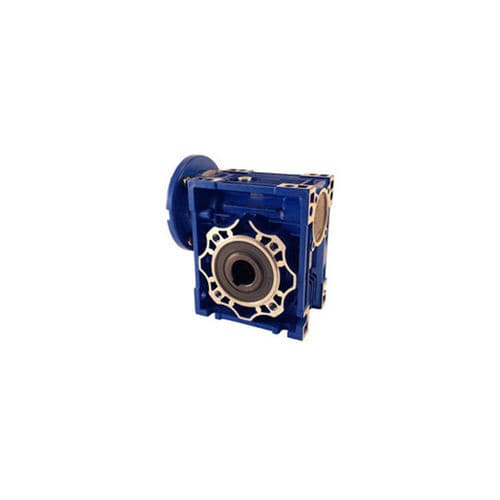

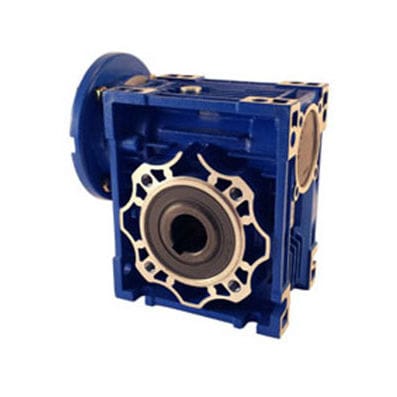

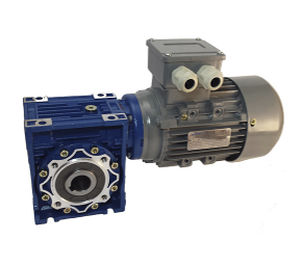

Worm gears in modular square case.
Sizes 25, 30, 40, 50, 63, 75, 90, 110 and 130.
Output torques from 10 Nm to 2300 Nm
Manufactured in aluminium case from 90 size and cast iron for the 110 and 130 ones.
Output shafts from d.11 mm to d.48 mm.
Acceptable powers 0.09 kW to 22 kW.

Parameter Name	Parameter Value
Type	worm
Shaft orientation	right angle
Torque (Nm)	2000 - 5000
Other characteristics	modular
Rotational speed (rpm)	0 - 2800
Power (W)	90 - 22000
