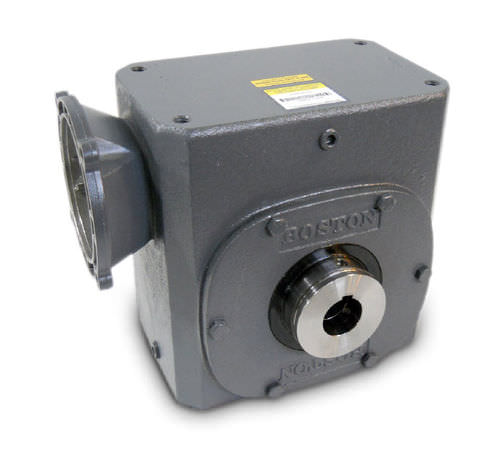

Our standard 700 Series - the heart of Boston Gear's speed reducer product line - has been serving industry reliably for over 15 years. Its proven modular design has set the industry standard for performance and is the most imitated product in today's worm gear speed reducer market. But why settle for a knock-off when you can have the original - from Boston Gear.
Specifications
11 basic single reduction sizes
8 basic double reduction sizes
1/6 - 25 HP
5:1 - 100:1 ratios single reduction
100:1 - 3600:1 ratios double reduction
Non-flanged, NEMA C-face quill, and coupled input styles
Projecting and hollow output shafts
Projecting diameters from 1/2" to 2-1/4"
Hollow output bore diameters from 5/8" to 3-7/16" (with over 20 bore sizes in stock)
Product Features
The 700 Series' large oil reservoir provides efficient heat dissipation and lubrication for longer operating life.
Its multi-position mounting flexibility allows for installation in virtually any position.
Housings are straddle-milled, top and bottom, for precise alignment of horizontal and vertical bases.
Internal baffles assure positive, leak-free venting.
The 700 Series' rugged housing, fabricated of fine-grained, gear-quality cast iron, provides maximum strength for maximum durability, as well as greater precision during worm and gear alignment.
Boston Gear's 700 Series high-strength bronze worm gear is straddle mounted between heavy-duty tapered roller bearings to increase thrust and overhung load capacities, sizes 713-760.

Parameter Name	Parameter Value
Type	worm
Shaft orientation	right angle
Other characteristics	modular industrial
