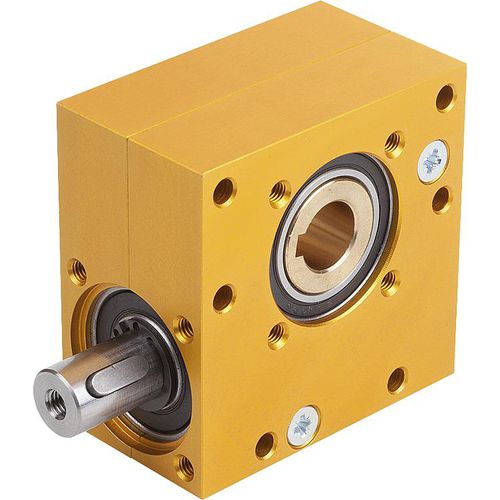

Worm drives

Material:
Housing aluminium.
Worm screw steel, worm wheel special brass.

Version:
Housing anodized.
Worm screw case hardened.
Ball bearing with rubber sealing washer RS.

Note:
Universally applicable and maintenance-free worm drive in one size with a centre distance of 20 mm and 7 different ratios. The housing is sealed to prevent grease leakage and keep dust out. These are left hand worm gears. The rotation direction on the shaft is arbitrary.

- smooth power transmission
- simple screw fastening
- quiet

Technical data:
Radial backlash: ±1°
Duty cycle: 20% (at 5 min.)
Service life: ca. 1000 hours (at full load, speed 500 rpm and duty cycle 20%)
Temperature range:
-20 °C to +60 °C.

Note:
FR permissible radial force at FA=0
FA permissible axial force at FR=0

Parameter Name	Parameter Value
Type	worm
Torque (Nm)	2000 - 5000
Performance	high-precision low-noise maintenance-free
Applications	transmission
Other characteristics	industrial universal
Rotational speed (rpm)	100 - 1000
