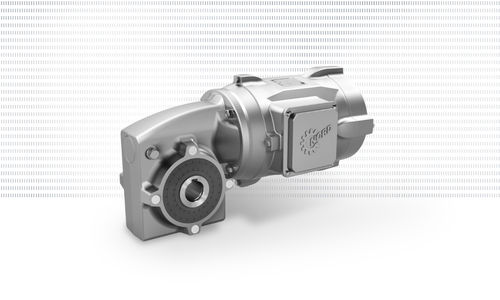

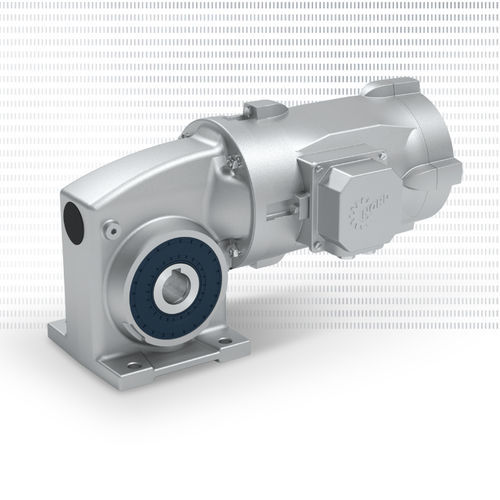

SMI worm gear units provide a high power density and are extremely compact. They feature low-noise torque transmission. Due to the simple but effective design they provide considerable installation space advantages in comparison with other gear unit types. SMI worm gear units are available in the following versions: smooth surface, closed surface.

Versions

• Hollow and solid shaft gear units
• Bolt-on-, flange- and foot-mounted versions
• Angled gear units

• High overload capacity
• Application-specific versions
• Soft and quiet running
• Aluminium housing version for low weight
• Modular, flexible and versatile application
• Smooth housing surface for wash-down applications
• nsd tupH version possible
• Application-specific versions

Parameter Name	Parameter Value
Motor type	DC AC
Type	worm
Shaft orientation	right angle
Shaft configuration	hollow-shaft
Power (W)	100 - 500 500 - 1000 1000 - 2000 2000 - 5000
Torque (Nm)	20 - 50 50 - 100 100 - 200 200 - 500
Performance	high-efficiency
Product applications	industrial washdown
Other characteristics	compact low-noise foot-mounted flange-mount modular aluminum frame
Gear ratio (unit)	5 - 3000
