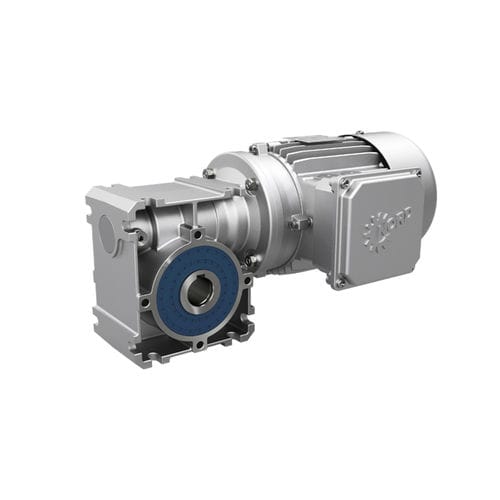

UNIVERSAL SI worm gear units provide a high power density and are extremely compact. They are characterised by having low-noise torque transmission. Due to the simple but effective design they provide considerable installation space advantages in comparison with other gear unit types.

Versions

• Hollow and solid shaft gear units
• Bolt-on-, flange- and foot-mounted versions
• Angled gear units

• High overload capacity
• Application-specific versions
• Soft and quiet running
• Aluminium housing version for low weight
• Optional 10: 1 helical pre-stage and double worm gear unit
• Modular, flexible and versatile application
• nsd tupH version possible
• Output shaft bearing for high load capacities

Parameter Name	Parameter Value
Motor type	DC
Type	worm
Shaft orientation	right angle
Shaft configuration	hollow-shaft
Power (W)	100 - 500 500 - 1000 1000 - 2000 2000 - 5000
Torque (Nm)	20 - 50 50 - 100 100 - 200 200 - 500
Product applications	industrial for conveyors
Other characteristics	compact low-noise modular flange-mount foot-mounted aluminum frame
Gear ratio (unit)	5 - 3000
