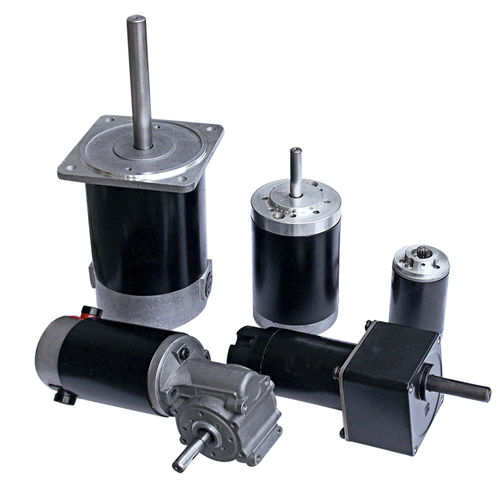

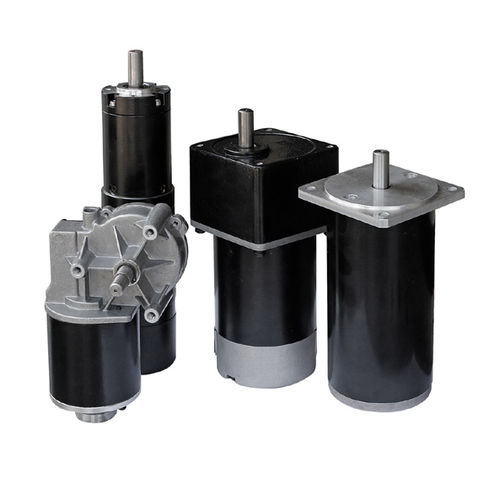

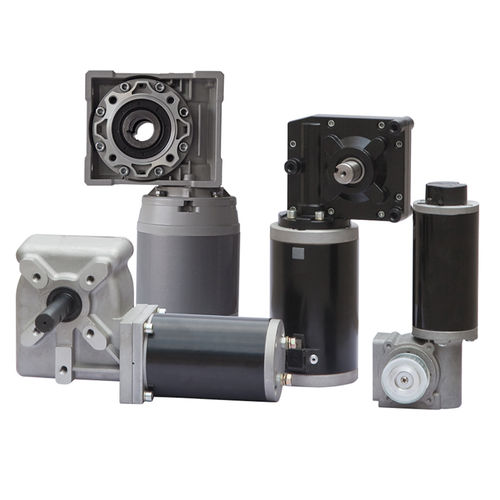

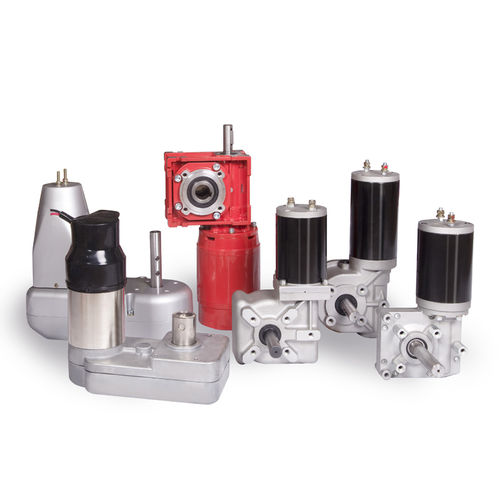

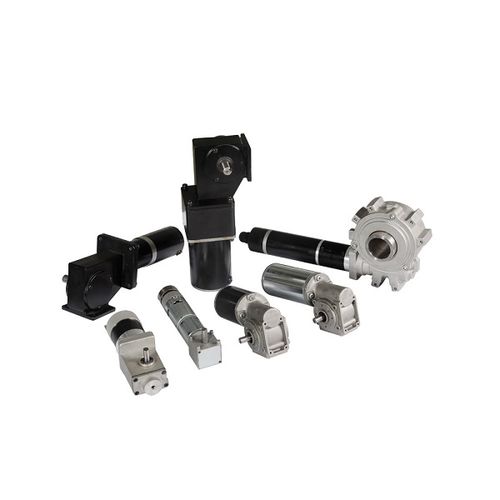

DYD DC Right Angle Gear Series
DC worm gear motor/DC right angle gearmotor/DC motor with right angle gearbox/DC gearmotor/DC geared motor/electric DC motor/ DC motor with worm gearbox/DC worm geared motor
Gearbox Frame: 50JW, 63JW, 70JW, 90JW, 102WJ, 108WJ, 122WJ, 130WJ, JW-3, JW-5, RV030, RV040, RV050, RV063, RV075, RV090
Motor OD: 42MM ~ 170MM
Rated Torque up to 300N.m
Rated Speed: 1 ~ 700RPM
Protection up to IP66
Optional: Encoder / Brake / Connector / Pulley
Typical applications:automatic sliding door systems, power wheel chair, lift system, etc.

Parameter Name	Parameter Value
Motor type	DC permanent magnet brushless hydraulic
Type	worm
Shaft orientation	right angle
Shaft configuration	solid-shaft
Power (W)	100 - 500 10 - 50 50 - 100 0 - 10 500 - 1000 1000 - 2000
Voltage (V)	220 - 110
Torque (Nm)	1 - 5 5 - 10 10 - 20 20 - 50 0.5 - 1 50 - 100 0.1 - 0.2 0 - 0.1 100 - 200 200 - 500 500 - 1000
Performance	high-torque high-efficiency high-power low-noise high-performance high-precision high load capacity
Product applications	for automobiles for automation for industrial applications for vehicles for curtains for conveyor systems industrial door for the food industry appliance electronic equipment for furniture for trolleys for automatic doors for pumps for seat adjustment cleaning machine for conveyors for robotics for tracks for hygienic applications for lifting applications for door lock door for mixers for solar tracker for home appliances for the chemical industry for lawn-mowers for cleaners for packaging for floor scrubbers for agricultural applications for pharmaceutical applications with encoder for stairlifts flange for machines window for welding machines wiper for hospital beds for marine applications for trucks for robots for the packaging industry for sliding doors for sliding gates
Certifications	CE ISO 9001 ISO 14001
Other characteristics	compact low-noise permanent magnet high-torque custom solid-shaft hollow-shaft with encoder precision
Gear ratio (unit)	5 - 120
Operating temperature (°C)	-40 - 120
