About

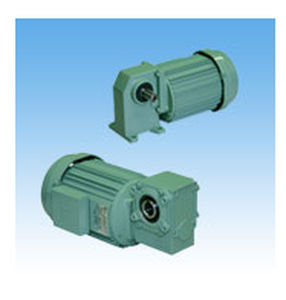

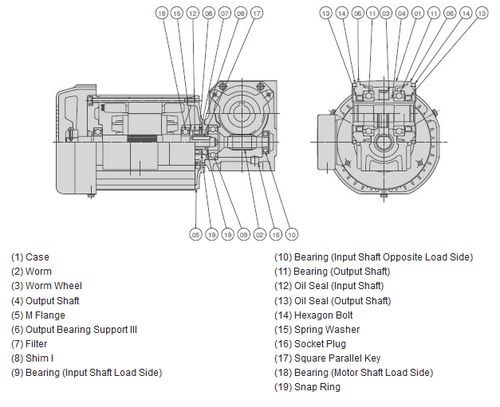

This reducer is a right-angle worm gear reducer with a motor that offers a small footprint, lightweight design, and quiet operation.
Croise Motor make use of worm gears to achieve space savings in equipment layout with right-angleshafts and high reduction ratios.
The output shaft can be selected from hollow and solid types.
We have a lineup of motor capacities of three-phase 0.1kW to 5.5kW and reduction ratios of 1/10 to 1/300.
MR series is compatible with High Efficiency motors. (IE3 Class : Premium Efficiency )
Features
・Right-angle shaft, high reduction ratio
The CSMA/CSMR series offers a reduction gear ratio of up to 1/60 in the first worm gear, and up to 1/300 in the HCMA/HCMR series with a combination of a helical gear and a worm gear in right-angle shaft models.
・Compact
The simple structure of the CSMA/CSMR series provides downsizing of the gear motor in total length. Adoption of a first helical gear in the HCMA/HCMR series reduces the offset between the input shaft and the worm gear output shaft, providing even greater compactness in height.
・Silent operation
The worm gear mechanism offers smooth and quiet operation compared to other gear mechanisms.
Also, the silent-type brake eliminates annoying metallic sound during suction.
・Superior stopping accuracy
Excellent positioning accuracy can be expected due to less backlash compared to other gear mechanisms.
・High Efficiency
At reduction ratios ranging from 1/10 to 1/60, the CSMA/CSMR series features high efficiency for a low reduction ratio range (1/10 to 1/30), and the HCMA/HCMR series for a high reduction ratio range (1/40 to 1/60).
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Motor type |
three-phase
|
| Type |
worm
|
| Shaft orientation |
right angle
|
| Power (W) |
|
| Other characteristics |
|
