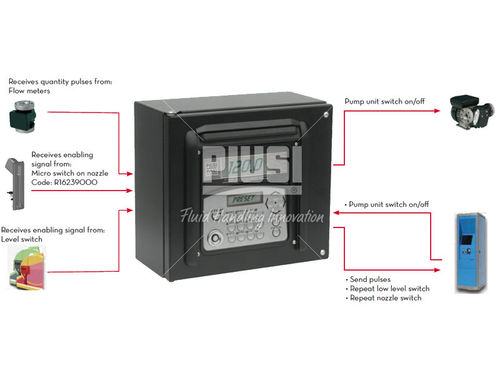

is a management system to monitor users, vehicles and fuel dispensing for non-commercial diesel fuel and AdBlue® distribution plants. The device consists of an electronic panel to which the system pump can be connected, an electronic flow meter, a nozzle contact and an external printer. MC BOX 2.0 also offers the ability to monitor tank fuel level by incorporating the OCIO 2.0

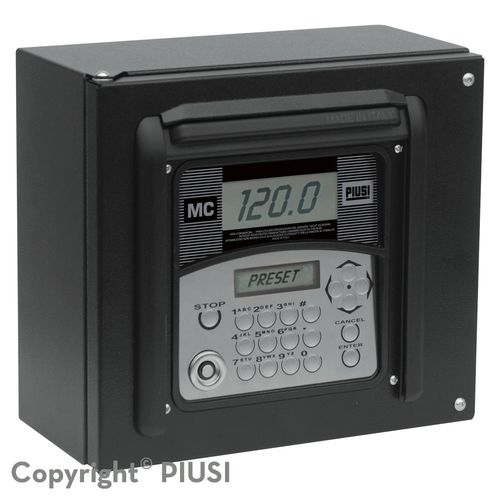

MCBOX 2.0 is equipped with a dual display, keypad and i-button key reader. Two-way dialogue is possible with a PC via the standard LAN connection, which not only makes it able to receive data but also lets you change the configuration from a remote location, conveniently and accurately.

The device is available in a LAN or WiFi version to meet consumer needs. Both versions can be used with the Self Service management 2.0 software.

MCBOX 2.0 FEATURES

Access control
Pump start
Pre-selection
Management of a Pulser flow meter,

Management of an external level switch to turn the pump off in low level conditions,

Management of microswitch connected to nozzle holder,

External printer connection.

Parameter Name	Parameter Value
Options	WLAN
