New versatile SCALANCE Wi-Fi 6 components:
Industrial Wireless LAN brings more flexibility to future-proof modular factories. It enables high-performance wireless networking of a wide range of IIoT devices. The powerful SCALANCE W Access Points and Client Modules are available with the current WLAN standard IEEE 802.11ax (Wi-Fi 6) in different variants.
New and specially designed for the control cabinet: SCALANCE WxM763-1 in space-saving design and with integrated managed 4-port switch. This enables convenient wireless connection of mobile robots and automated guided vehicles (AGVs), among others.

Highlights:
- IP30 devices with the latest WLAN standard for industry
- Special additional industrial functions, e.g. redundancy via WLAN
- Gigabit data rates and highly efficient data transmission
- Energy-efficient operation of mobile subscribers
- Worldwide approvals and industry-specific certifications

Variants: For use inside the control cabinet

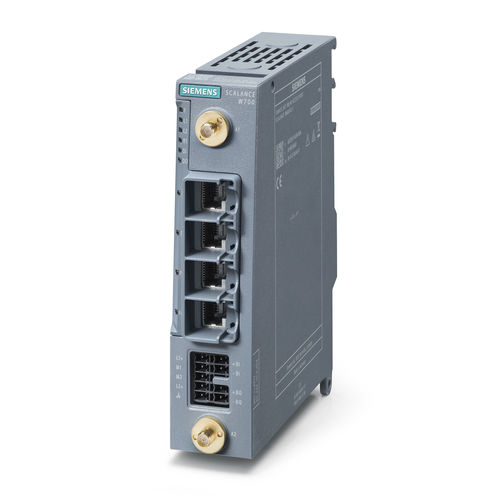

- SCALANCE WAM763-1 Access Point (6GK5763-1AL00-7DA0): 1 radio interface, 4x RJ45 Industrial Ethernet Gigabit ports, 2x RSMA antenna connector, IP30 protection class, with digital input/ digital output
- SCALANCE WUM763-1 Client Module (6GK5763-1AL00-3DA0): 1 wireless interface, 4x RJ45 Industrial Ethernet Gigabit ports, 2x RSMA antenna connector, IP30 protection class, with digital input/ digital output
SCALANCE WUM763-1 Client Module (6GK5763-1AL00-3AA0): 1 wireless interface, 4x RJ45 Industrial Ethernet Gigabit ports, 2x RSMA antenna connector, IP30 protection class, without digital input/ digital output

Parameter Name	Parameter Value
Network	WLAN WiFi RJ45
Other characteristics	high-performance industrial for control cabinets DIN rail
