SYNDY 1 is the compact solution dedicated to the automatic wiring of luminaires using Syndy system.
Syndy is the new robotized automatic wiring system for lighting appliances by System Robot Automazione.

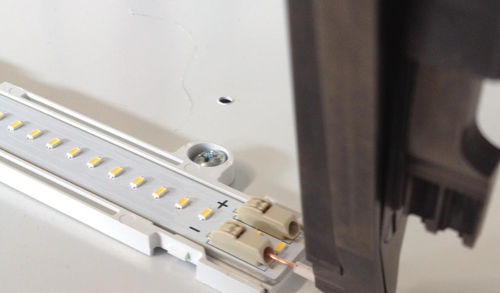

The applied technology on the wiring tool enable to use all kinds of standard components with “Push-in” and/or IDC terminals during the same operation cycle.

Thanks to this technology and the use of open software with editable macros, Syndy represent the only real universal system for automatic wiring that guarantee flexibility and the independence in choosing the components to use from different suppliers.

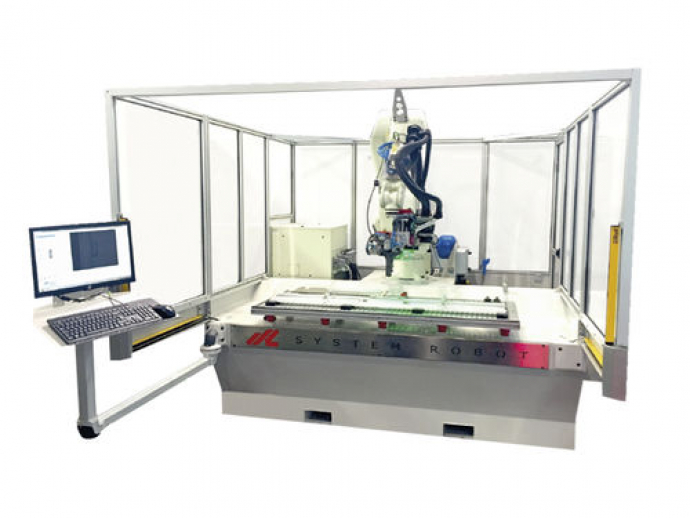

SYNDY 1 is a single operative station machine with fix table and Syndy wiring robot, compact, safe and easy to use.

SYNDY1 is the right solution for all manufacturers who want to take the first step towards wiring automation, or have a compact system for small production batches.

STRUCTURE
Solid monoblock supporting structure, easy to transport and install.

ROBOT
New generation Kawasaki’s 6-axis robot, fast and reliable.

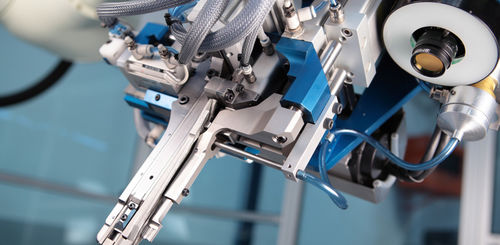

SYNDY WIRING HEAD
Sturdy and equipped with two units that allow the insertion of the wire in the automatic terminal clamps, both horizontally and vertically, or in the IDC terminals during the same operating cycle. Equipped with optical device for system of vision and recognition of the components.

The sturdy wiring head is mounted on the robot wrist and integrates all the movements necessary for the wiring process:

Parameter Name	Parameter Value
Function	wiring
Applications	for the lighting industry
Other characteristics	compact
