e-FOB transmitters are available as a direct replacement to TriMark’s 500-1000 e-ASK system and 500-1100 e-FOB Systems.

Designed For

Replacement components of TriMark's e-ASK systems

Available

3 different programming functions; standard mode, cargo mode and sustained mode. Modes provide customized remote fob transmitter use.
Standard mode allows for the lock/unlocking of doors plus panic mode and one auxiliary output (controls lighting, opens compartment, etc.)
Cargo mode allows for the lock/unlocking of main personnel doors plus independent control of many cargo/compartment doors
Sustained mode allows for the lock/unlocking of doors plus continuous output control with lower buttons pressing

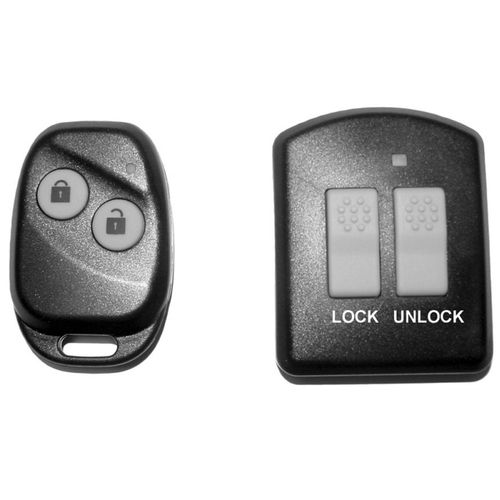

4-button standard and cargo fob, 2-button fob, wall mount
Customized graphics possible (buttons and logos - please inquire)

Installation

e-FOB receiver is easily installed with (2) #6 or M3 screws (not included) and can be mounted in a concealed location
Standard 12 VDC power

U.S. Design Patent No. D563,097 / D590,780 / D589,000

Parameter Name	Parameter Value
Network	wireless
Specifications	hand-held
